BRANCH 87.5° - (830.125.125 S)
Part Of the Series: Branch-87.5
Type no.: 830.125.125 S
EAN no.: 5705499409017
VVS no.: 160221425
RSK no.: 1551174
NRF no.: 2170831
LVI no.: 0256025

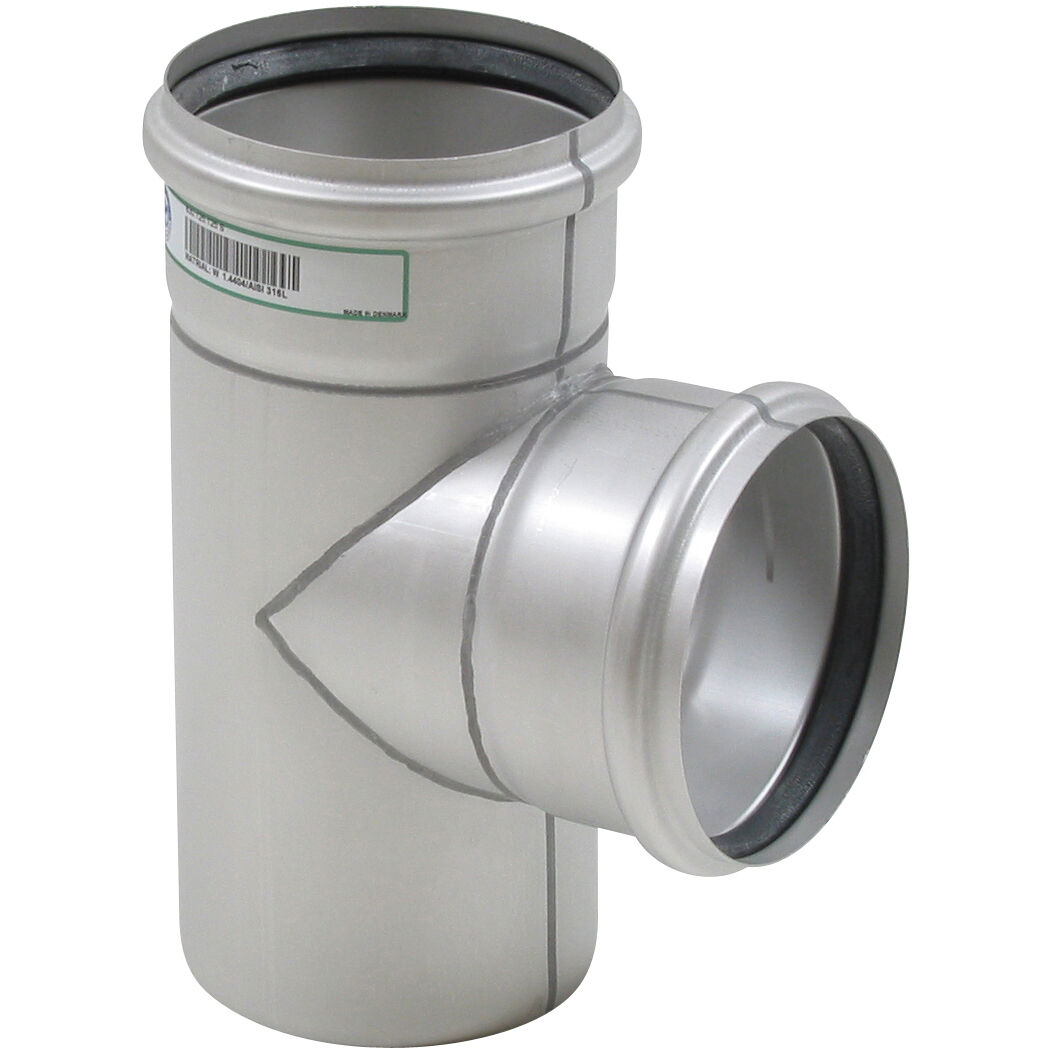

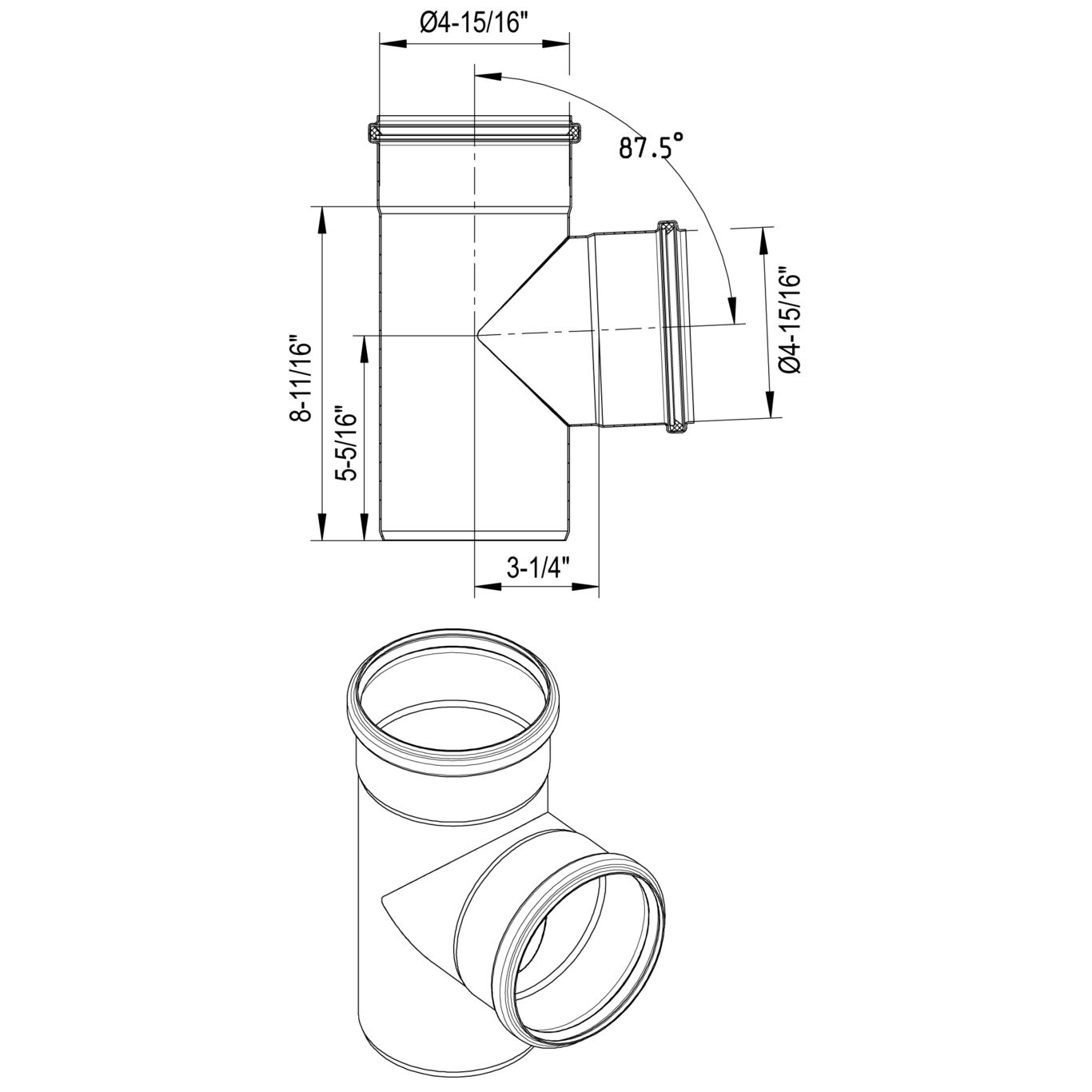

BRANCH 87.5°
-Pipe diameter: Ø125mm. Branch diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 220 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 125 |
Outlet Diameter (Inch) | 5 |
Weight (kg) | 1.17 |
Weight (lbs) | 2.58 |
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia DK - VA 2.12/19350 HACCP Food Safety Programme - Europe DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA
