BRANCH 87.5° - (830.110.160 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.110.160 S
EAN no.: 5705499401752
VVS no.: 160221457
RSK no.: 1550315
NRF no.: 2170827
LVI no.: 0251964

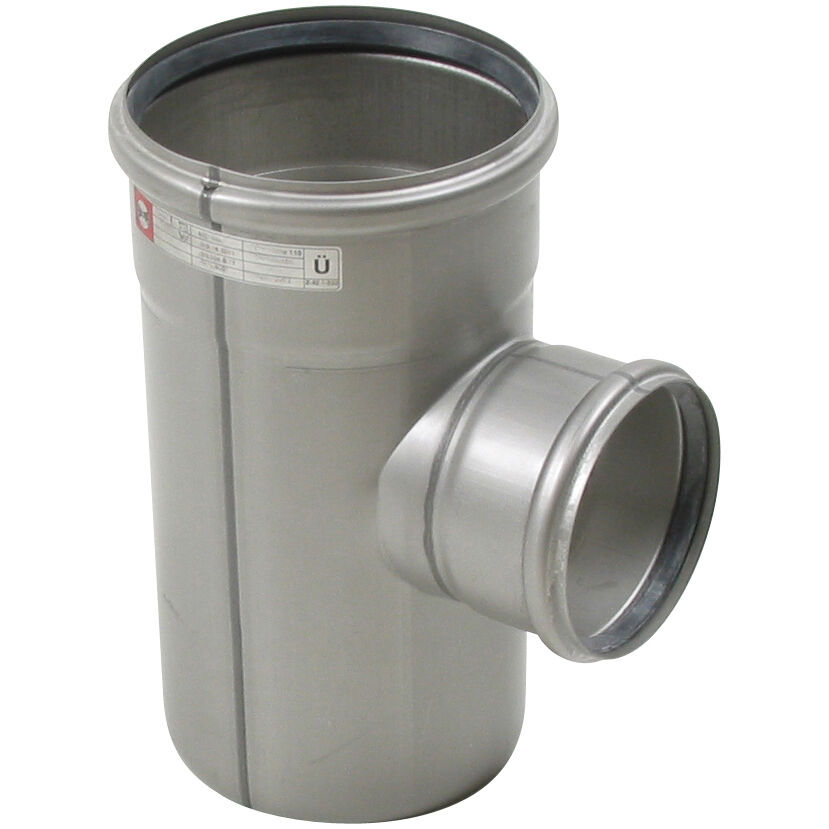

BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 236 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 1.83 |
| Weight (lbs) | 4.03 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24 Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes
