BRANCH 87.5° - (830.082.082)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.082.082
EAN no.: 5705499411966
VVS no.: 160221082
NRF no.: 2172339

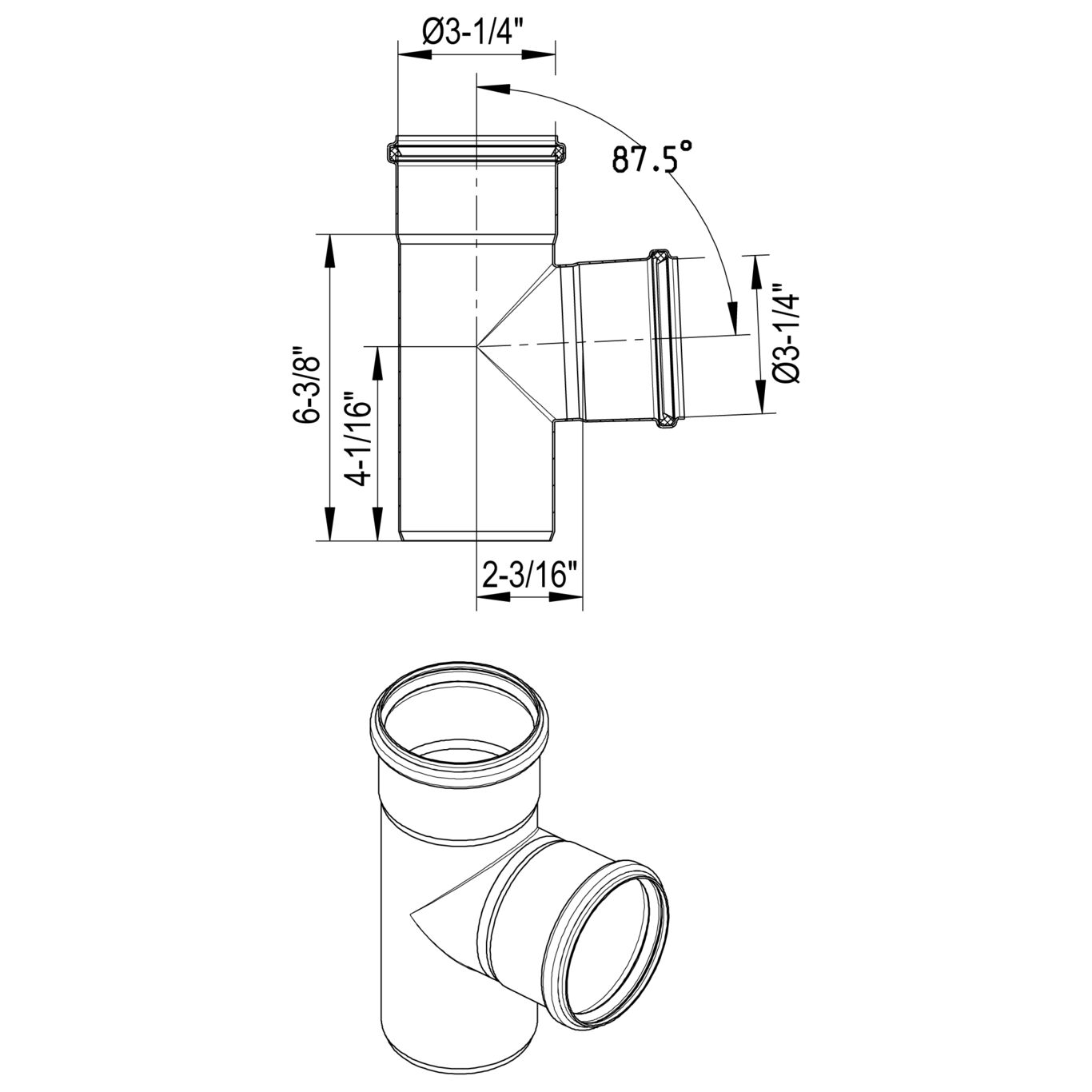

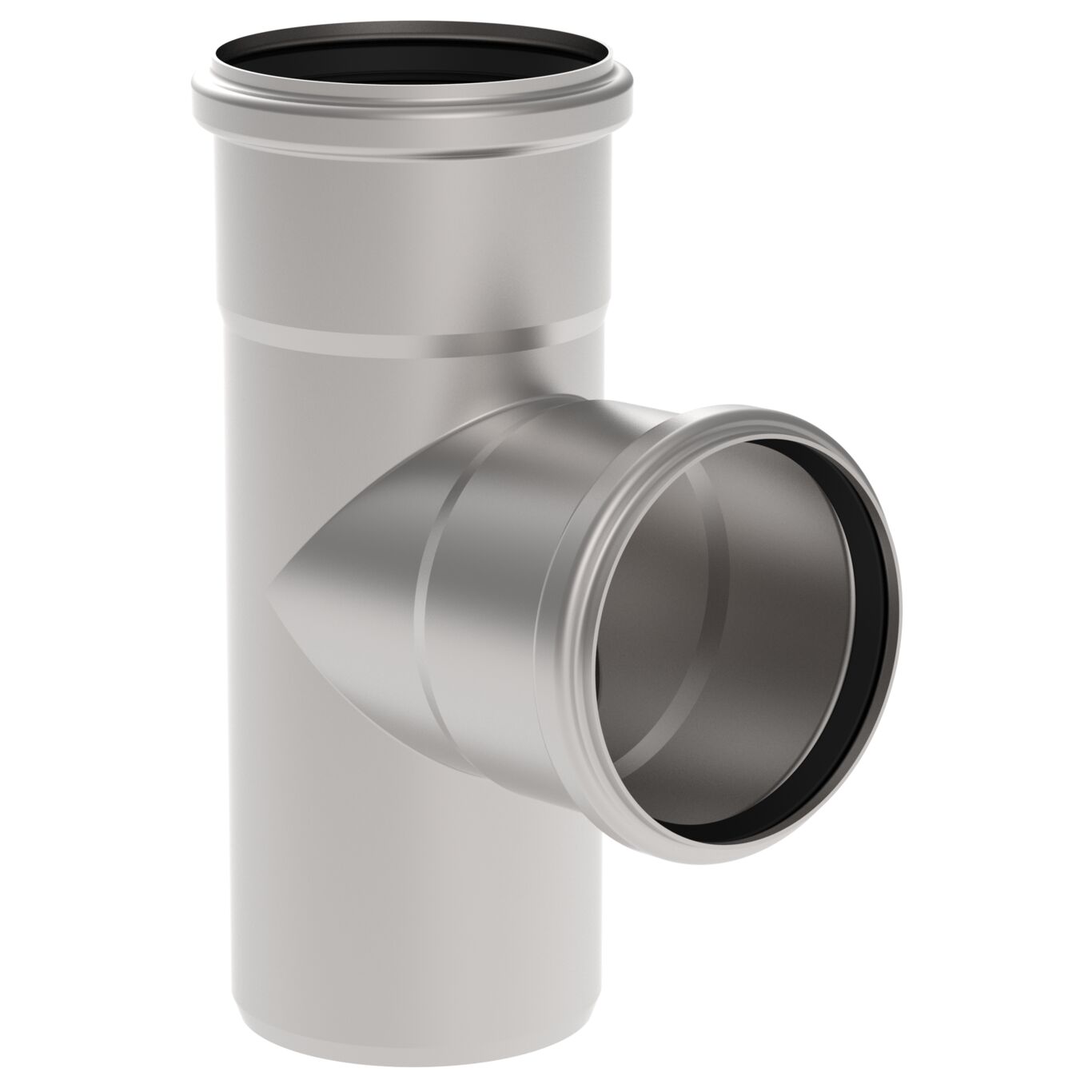

BRANCH 87.5°
-Pipe diameter: Ø82mm. Branch diameter: Ø82mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 Products | RS82 |
| Angle (°) | 87.5 |
| Length (mm) | 162 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 82 |
| Outlet Diameter (Inch) | 3-1/4 |
| Weight (kg) | 0.61 |
| Weight (lbs) | 1.34 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA
