BRANCH 87.5° - (830.075.075 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.075.075 S
EAN no.: 5705499401691
VVS no.: 160221375
RSK no.: 1550303
NRF no.: 2170816
LVI no.: 0251956

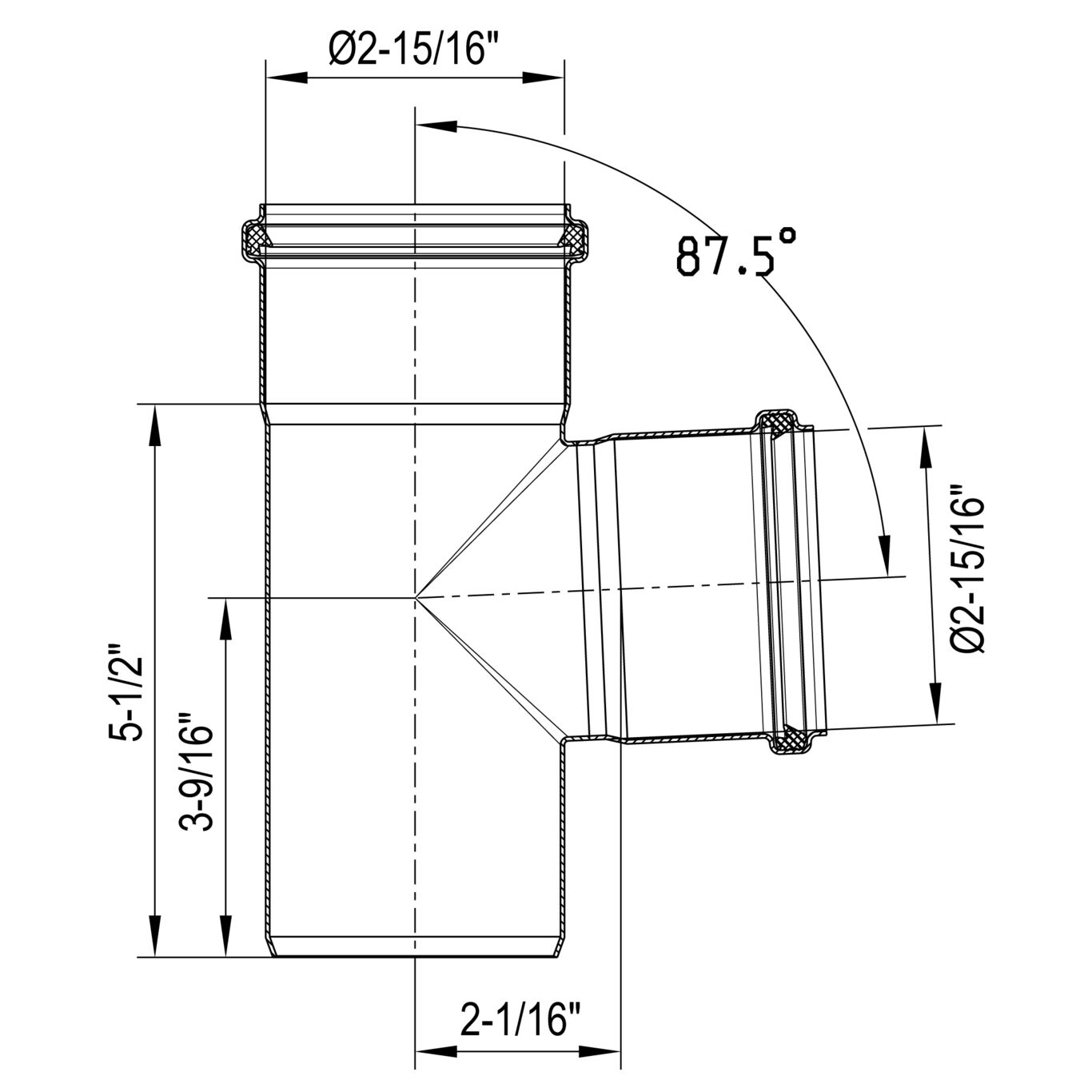

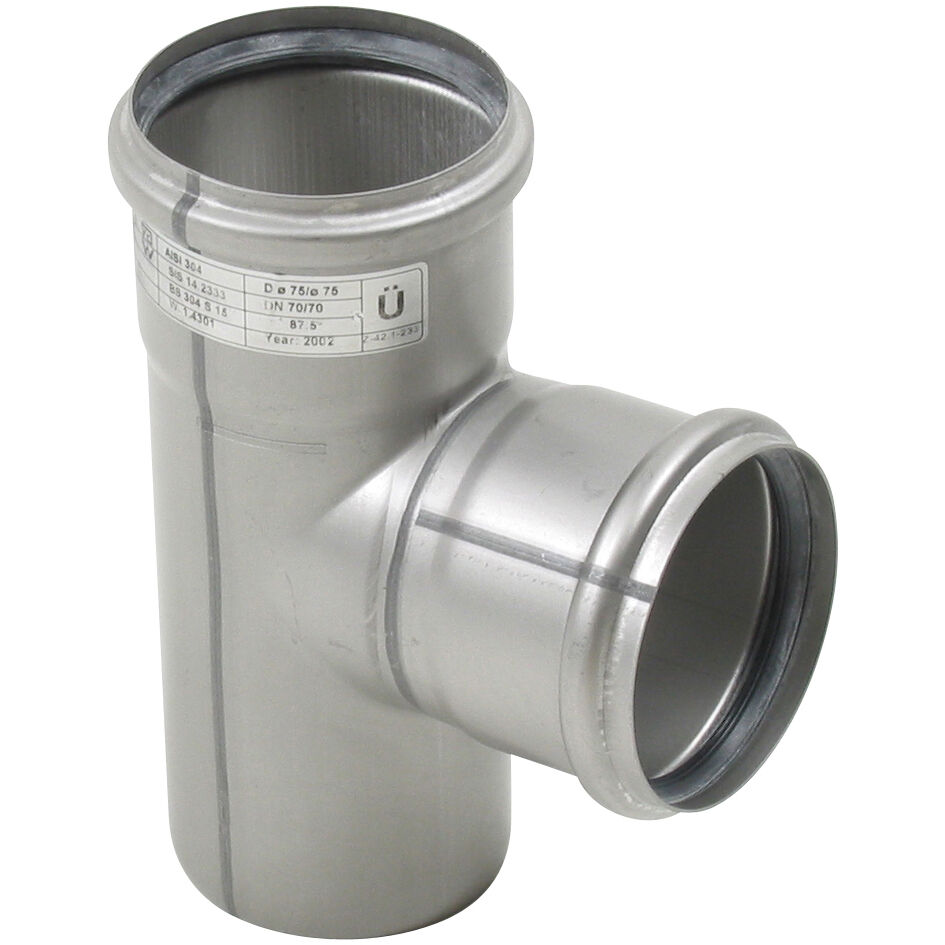

BRANCH 87.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.5 |
| Weight (lbs) | 1.1 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA Achilles Certificate - 46702-22 Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains
