BRANCH 87.5° - (830.050.160)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.050.160
EAN no.: 5705499401660
NRF no.: 2172336
LVI no.: 0246014

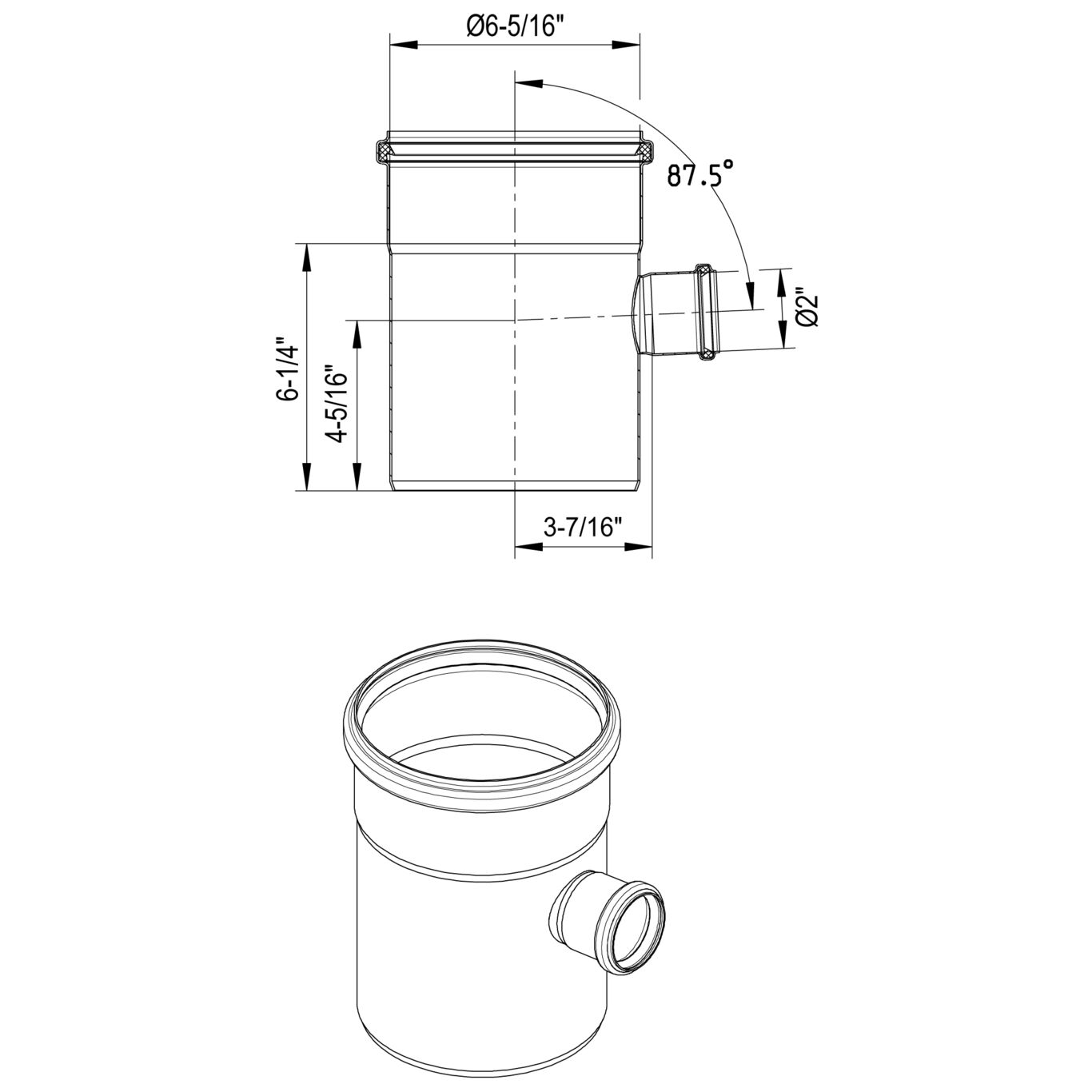

BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 158 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 2.4 |
| Weight (lbs) | 5.29 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
