BRANCH 87.5° - (830.050.050)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.050.050
EAN no.: 5705499401608
VVS no.: 160221050
RSK no.: 1550102
NRF no.: 2170109
LVI no.: 0241953

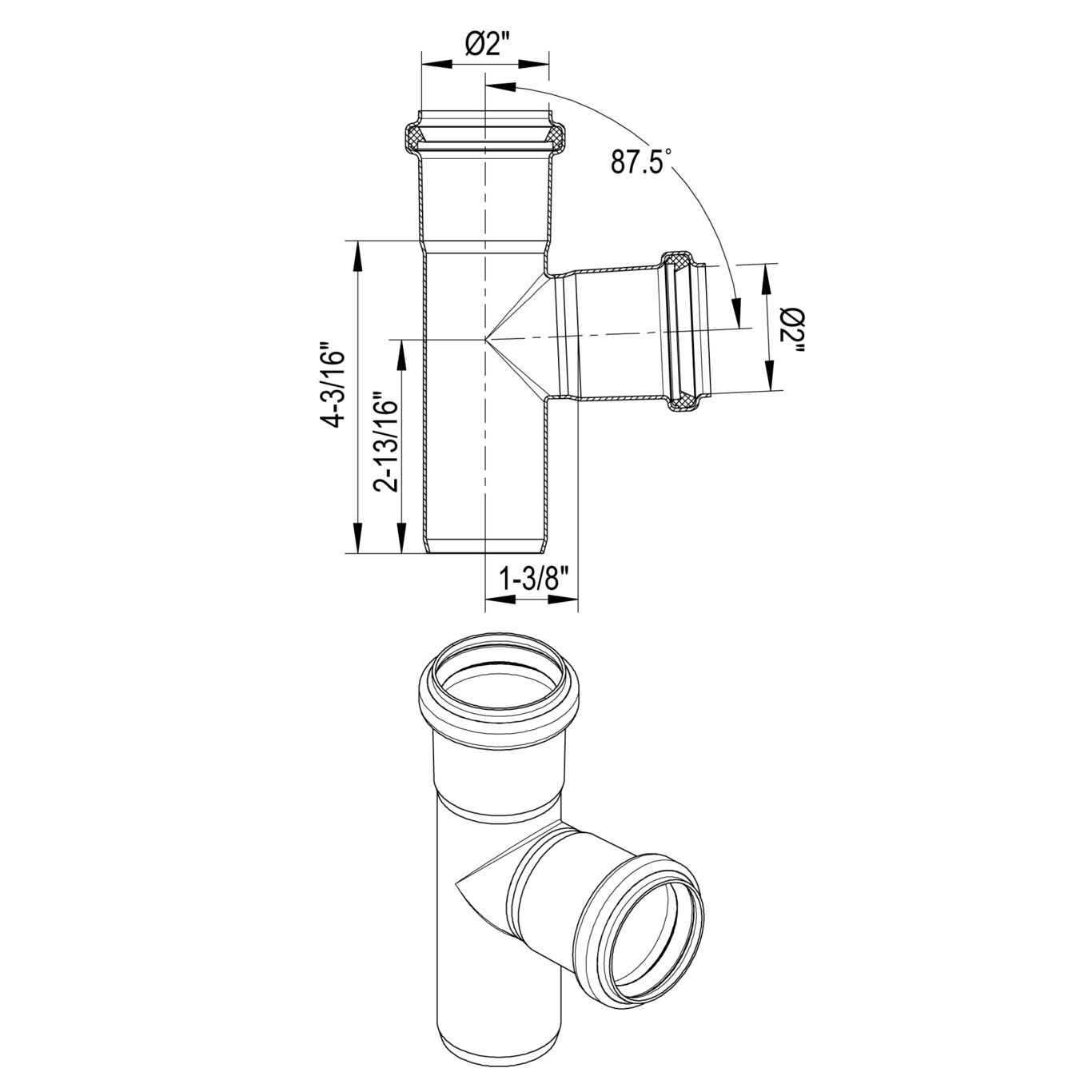

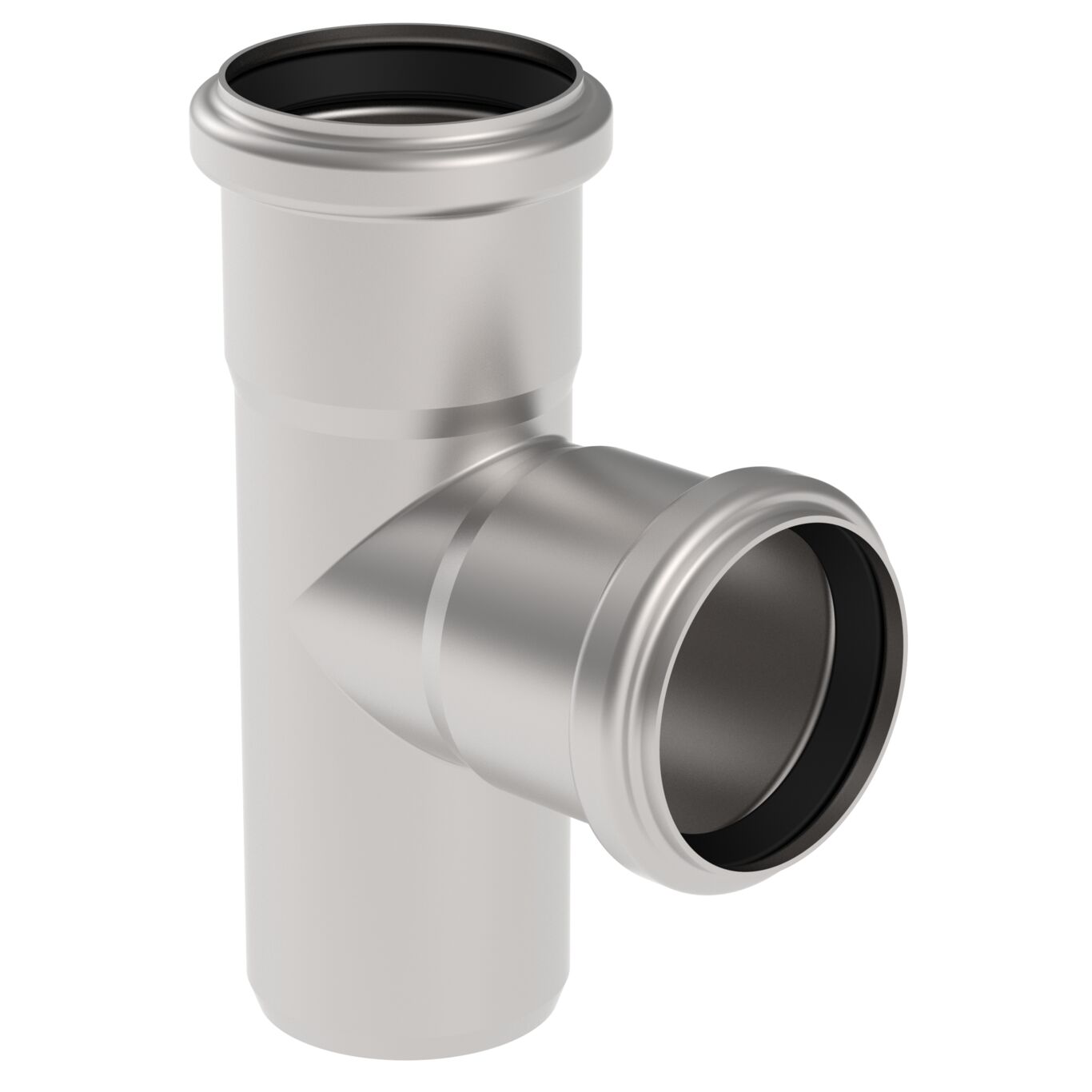

BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.27 |
| Weight (lbs) | 0.6 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 ABS - LD1716353-PDA Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products
