BRANCH 87.5° - (830.040.050 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.040.050 S
EAN no.: 5705499412963
VVS no.: 160221349
RSK no.: 1552761
NRF no.: 2172559
LVI no.: 0251952

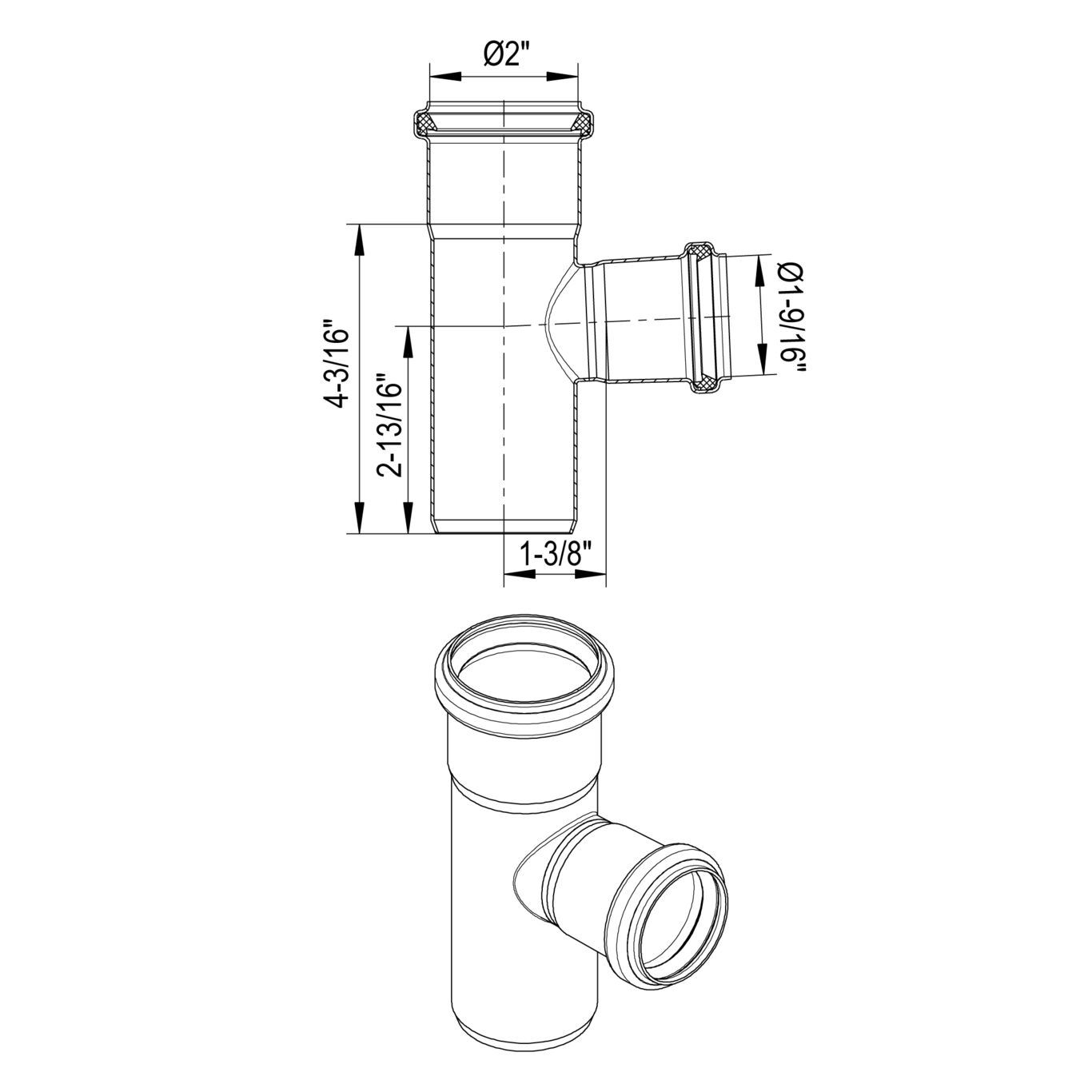

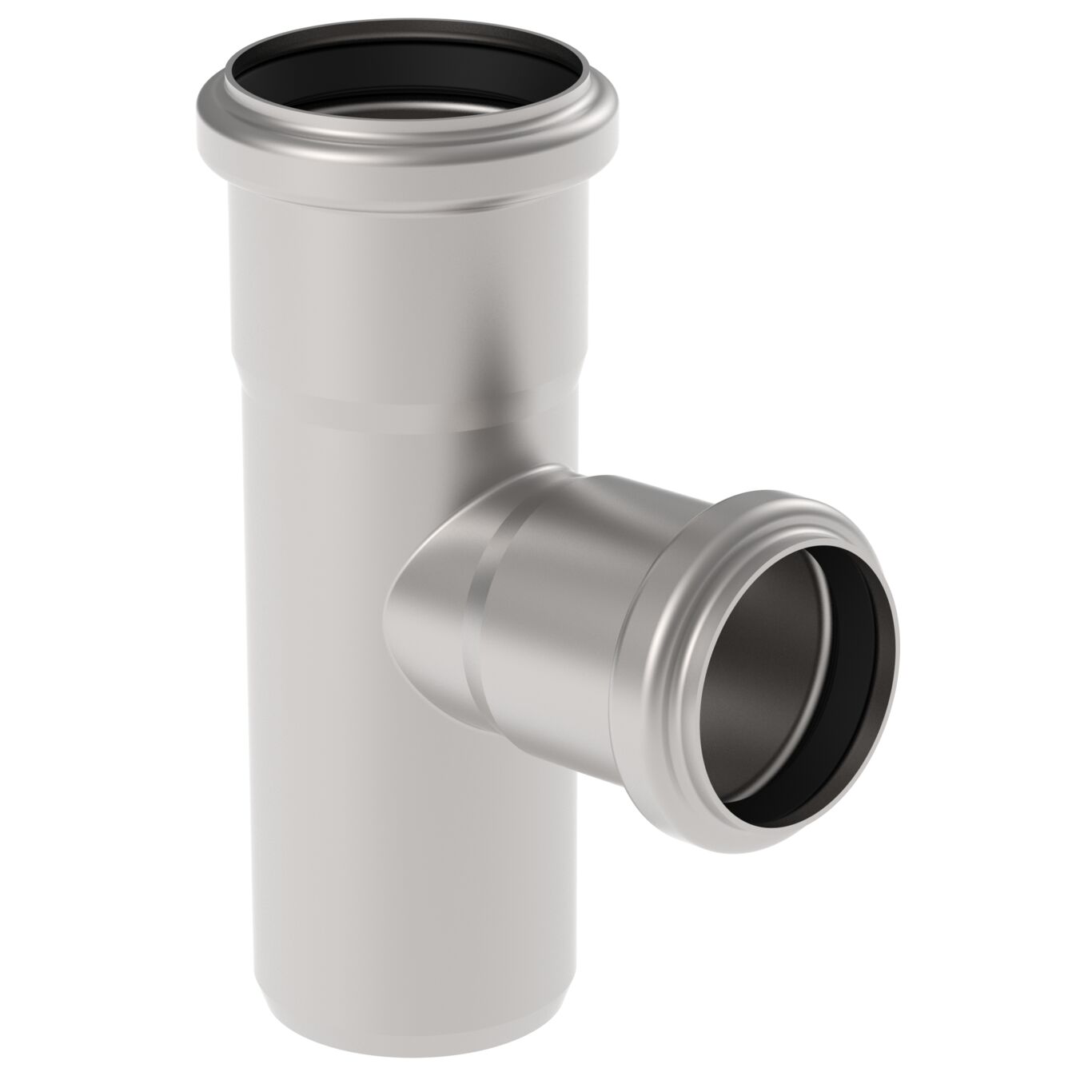

BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.26 |
| Weight (lbs) | 0.57 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - TÜV Rheinland R 60178453 0001
US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702 PL - Hygienic Certificate - All Products TÜRK LOYDU - 25041616077231247 Lloyds Register LR22419510TA RINA -MAC320524XG EuroPipe ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001
