OBLIQUE BRANCH 45° - (838.200.200 S)
Part Of the Series: Branch-45
Type no.: 838.200.200 S
EAN no.: 5705499411034
VVS no.: 160224500
RSK no.: 1551552
NRF no.: 2170842
LVI no.: 0251169

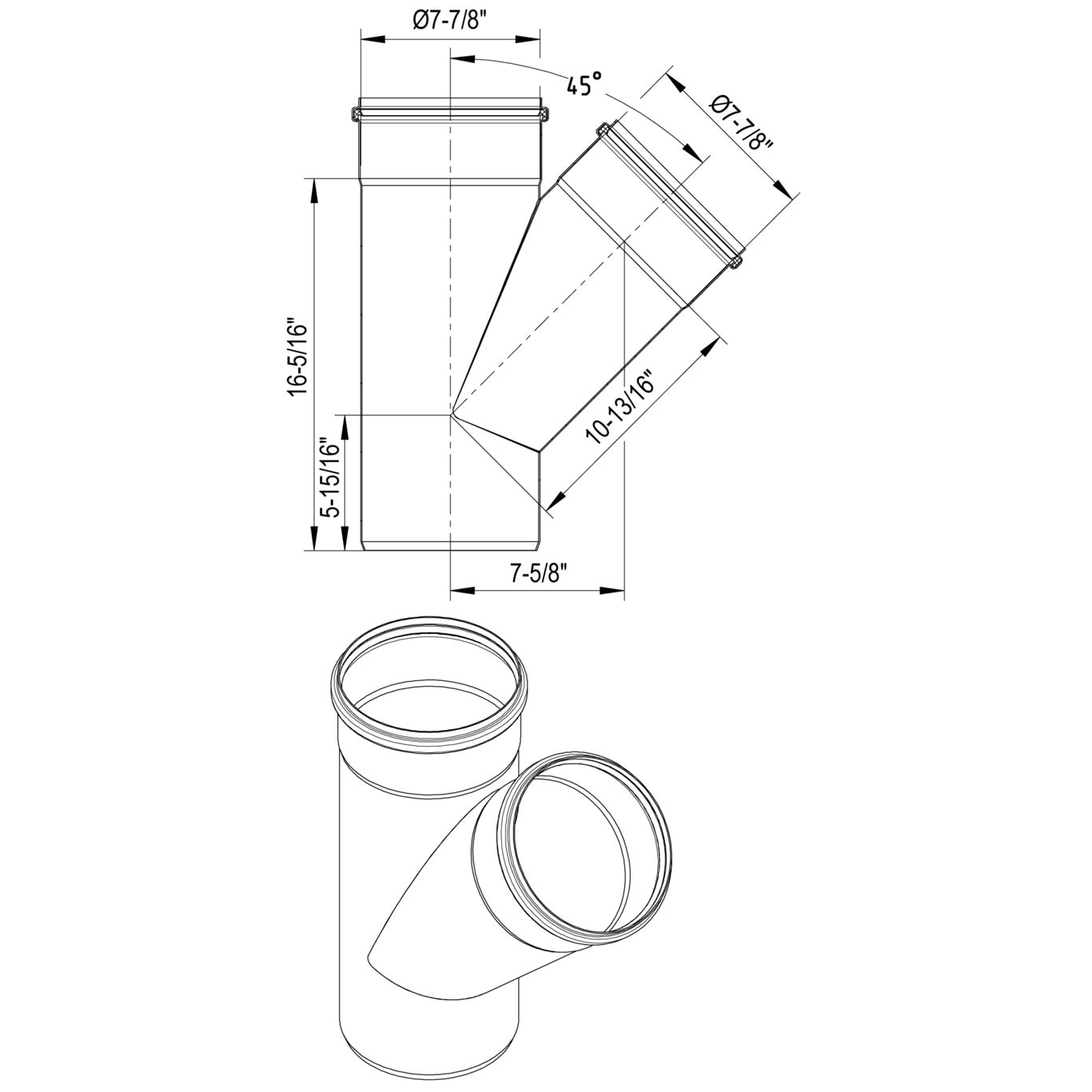

OBLIQUE BRANCH 45°
-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 415 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 200 |
Outlet Diameter (Inch) | 8 |
Weight (kg) | 5.47 |
Weight (lbs) | 12.06 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350 US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev4, Sanitary discharge pipes RU - 0212322 Pipes-21 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA Lloyds Register LR22419510TA Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products
