OBLIQUE BRANCH 45° - (838.160.160 S)
Part Of the Series: Branch-45
Type no.: 838.160.160 S
EAN no.: 5705499402506
VVS no.: 160224460
RSK no.: 1550308
NRF no.: 2170139
LVI no.: 0251165

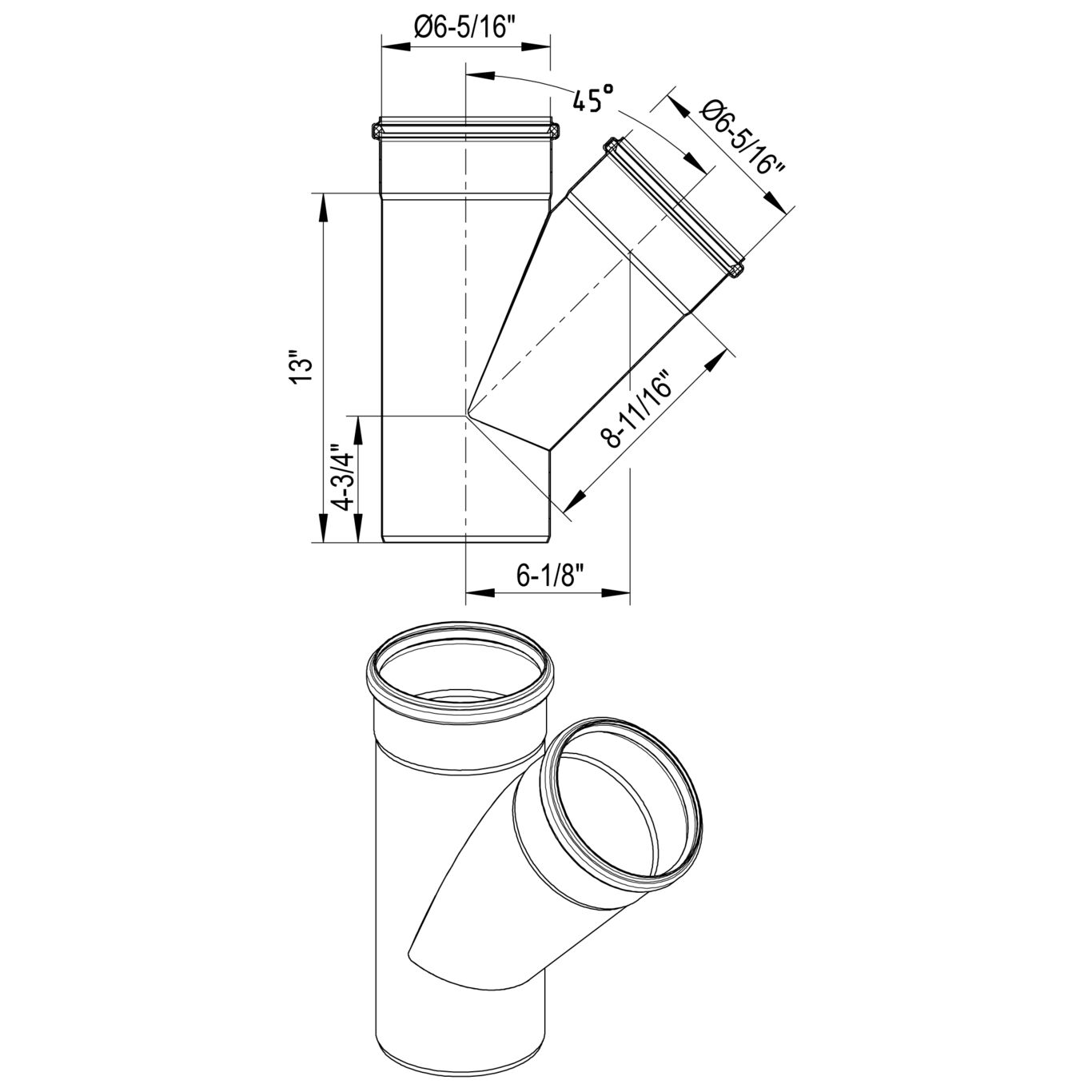

OBLIQUE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 331 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Weight (kg) | 3.04 |
Weight (lbs) | 6.7 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe DK - VA 2.12/19350 AUS - WMKT00204 - 24 FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 UR - 1055745 Product approval, EuroPipe and Drains RU - 0212322 Pipes-21 DNV - TAP0000023-rev4, Sanitary discharge pipes RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval ABS - LD1716353-PDA PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe
