OBLIQUE BRANCH 45° - (838.160.160)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.160.160
EAN no.: 5705499402490
VVS no.: 160224160
RSK no.: 1550115
NRF no.: 2170107
LVI no.: 0241165

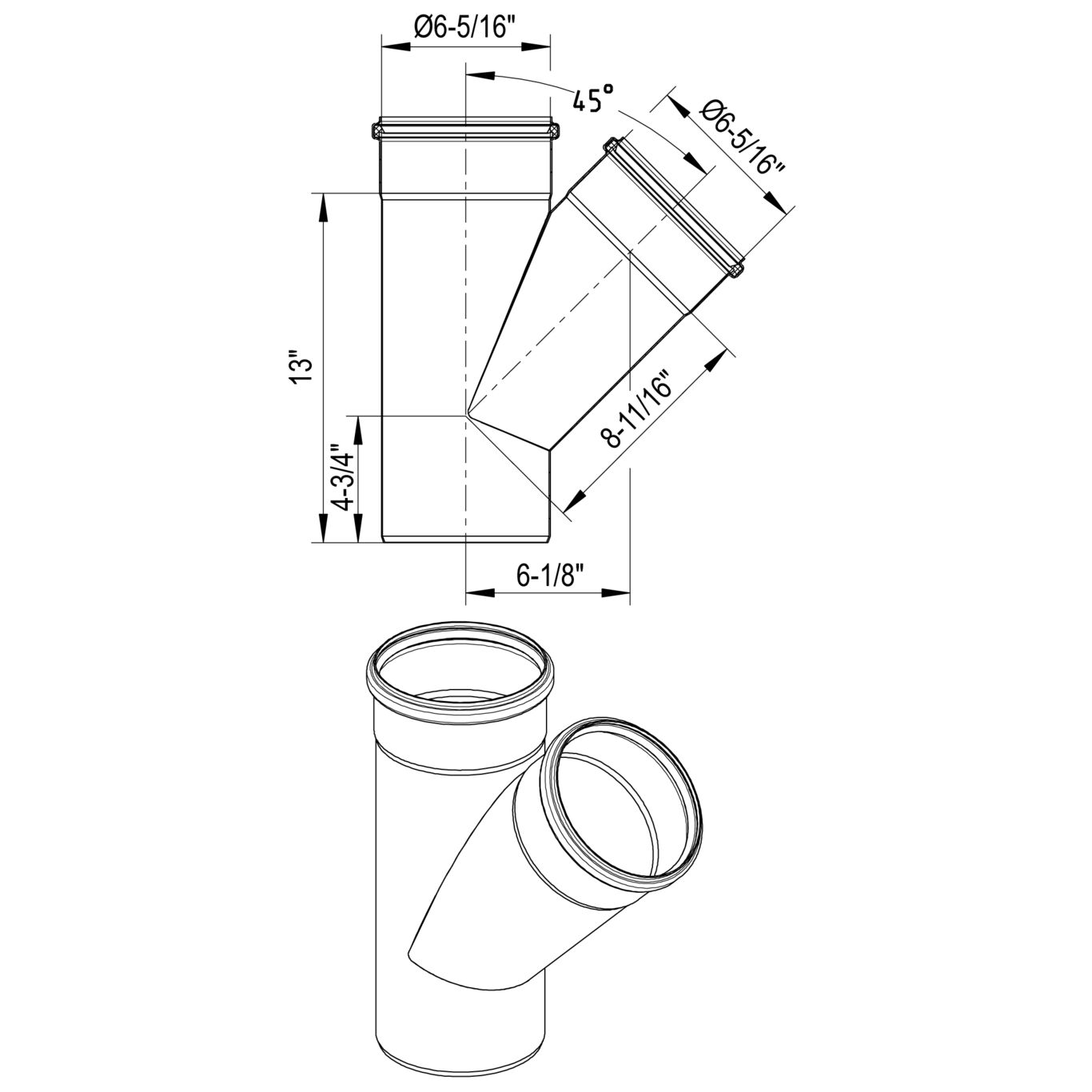

OBLIQUE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 331 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 3.04 |
| Weight (lbs) | 6.7 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DE - TÜV Rheinland R 60178453 0001
BLÜCHER® EuroPipe EPD Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM TÜRK LOYDU - 25041616077231247 Lloyds Register LR22419510TA Achilles Certificate - 46702 ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains
