OBLIQUE BRANCH 45° - (838.110.160 S)
Part Of the Series: Branch-45
Type no.: 838.110.160 S
EAN no.: 5705499402483
VVS no.: 160224457
RSK no.: 1550319
NRF no.: 2170138
LVI no.: 0251164
OBLIQUE BRANCH 45°

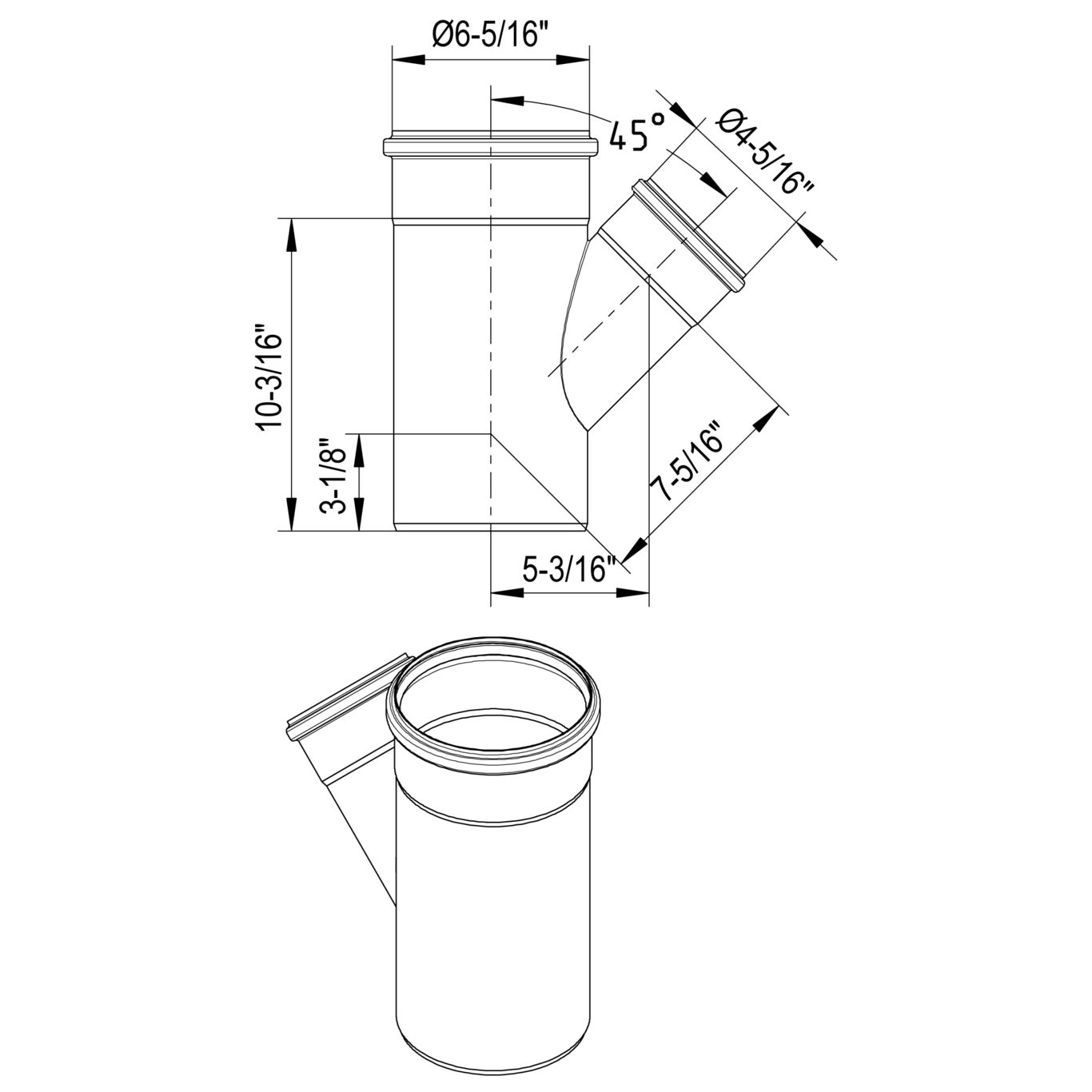

-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 258 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 160 |
Outlet Diameter (Inch) | 6 |
Weight (kg) | 2.11 |
Weight (lbs) | 4.65 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 DK - VA 2.12/19350 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 RU - 0212322 Pipes-21 ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products
