OBLIQUE BRANCH 45° - (838.082.082 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.082.082 S
EAN no.: 5705499412031
VVS no.: 160224382
NRF no.: 2172632

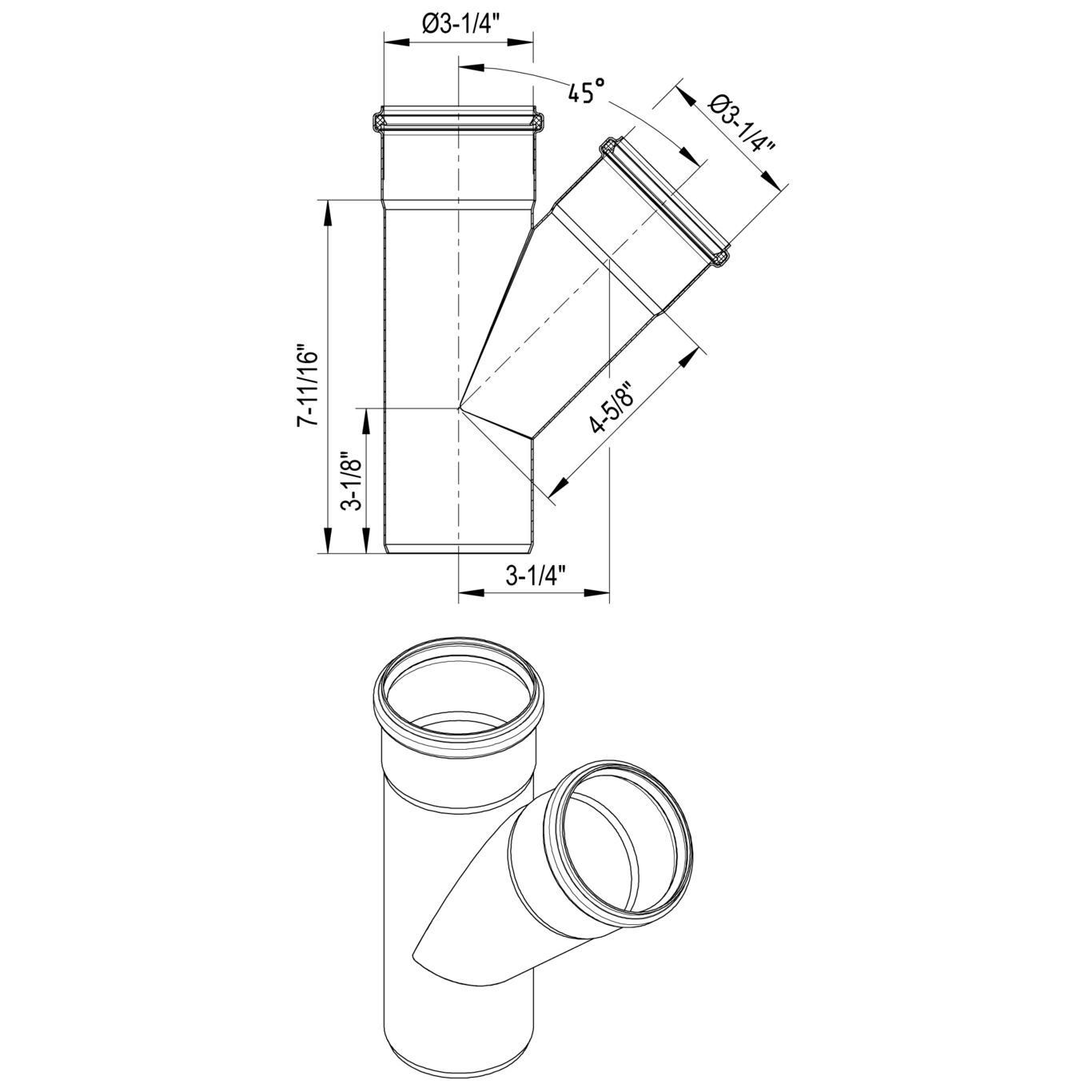

OBLIQUE BRANCH 45°
-Pipe diameter: Ø82mm. Branch diameter: Ø82mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| All Renovation 82 Products | RS82 |
| Angle (°) | 45 |
| Length (mm) | 195 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 82 |
| Outlet Diameter (Inch) | 3-1/4 |
| Weight (kg) | 0.75 |
| Weight (lbs) | 1.65 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - TÜV Rheinland R 60178453 0001
Declaration of Perfomance BS-EN1124-1-002
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
BLÜCHER® EuroPipe EPD
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance EN1124-1-001
