OBLIQUE BRANCH 45° - (838.082.082)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.082.082
EAN no.: 5705499412024
VVS no.: 160224082
NRF no.: 2172358

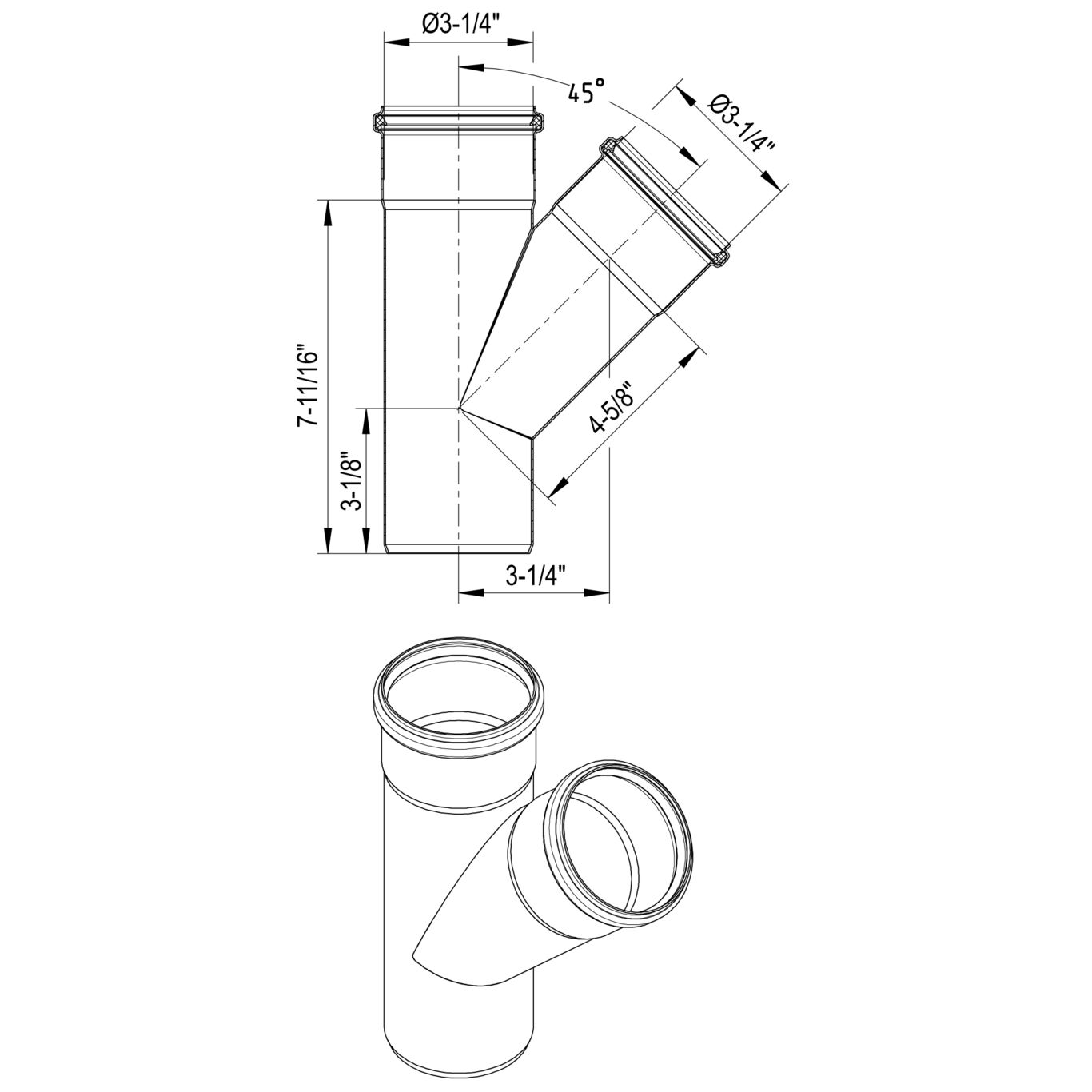

OBLIQUE BRANCH 45°
-Pipe diameter: Ø82mm. Branch diameter: Ø82mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 Products | RS82 |
| Angle (°) | 45 |
| Length (mm) | 195 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 82 |
| Outlet Diameter (Inch) | 3-1/4 |
| Weight (kg) | 0.75 |
| Weight (lbs) | 1.65 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance EN1124-1-001
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Europe
DE - TÜV Rheinland R 60178453 0001
Declaration of Perfomance BS-EN1124-1-002
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 ABS - LD1716353-PDA RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains TÜRK LOYDU - 25041616077231247 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA
