OBLIQUE BRANCH 45° - (838.050.110)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.110
EAN no.: 5705499402391
VVS no.: 160224106
RSK no.: 1550113
NRF no.: 2170093
LVI no.: 0241158

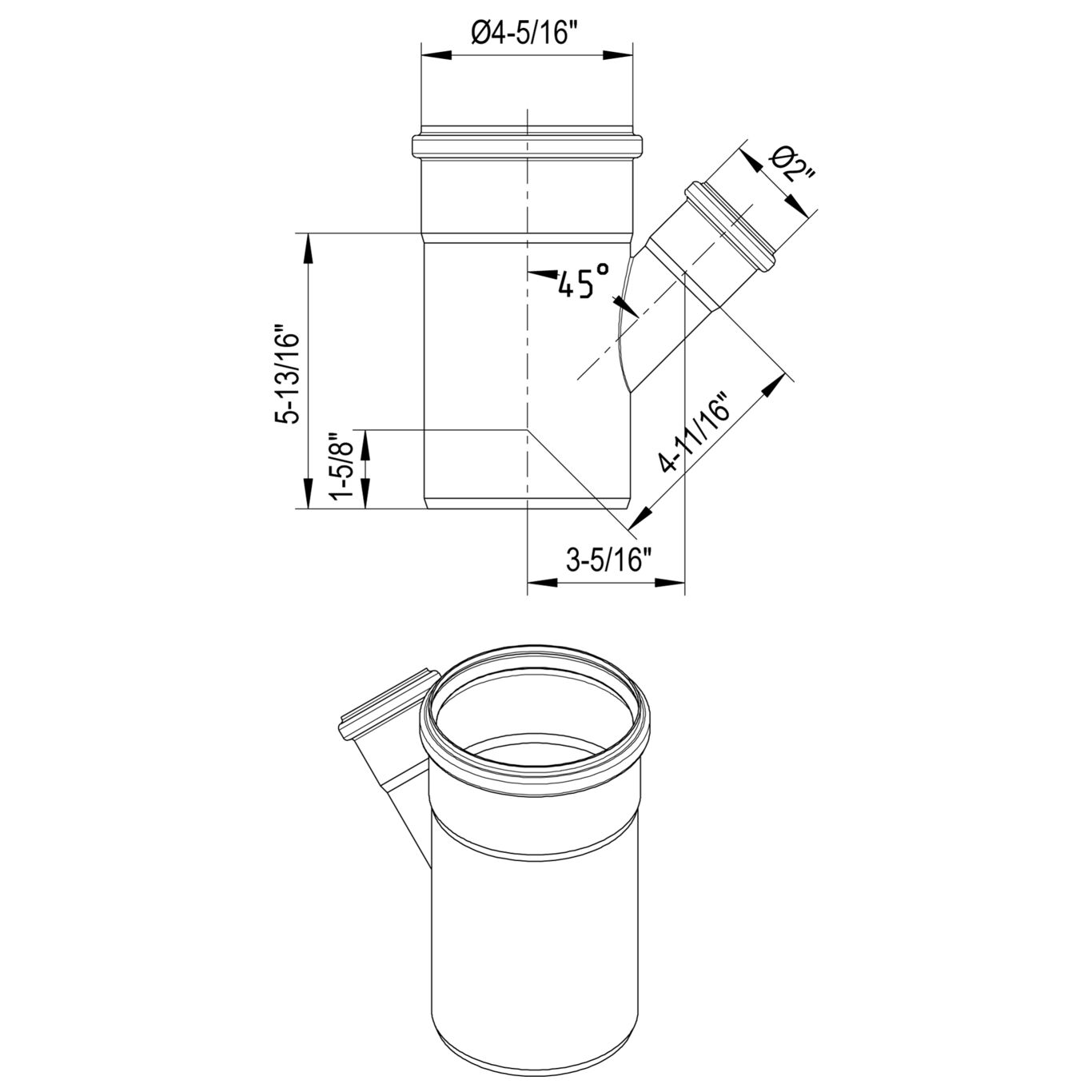

OBLIQUE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 147 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.7 |
| Weight (lbs) | 1.54 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - TÜV Rheinland R 60178453 0001
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
BLÜCHER® EuroPipe EPD
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702 TÜRK LOYDU - 25041616077231247 KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM
