OBLIQUE BRANCH 45° - (838.050.075)
Part Of the Series: Branch-45
Type no.: 838.050.075
EAN no.: 5705499402377
VVS no.: 160224073
RSK no.: 1550111
NRF no.: 2170086
LVI no.: 0241155
OBLIQUE BRANCH 45°

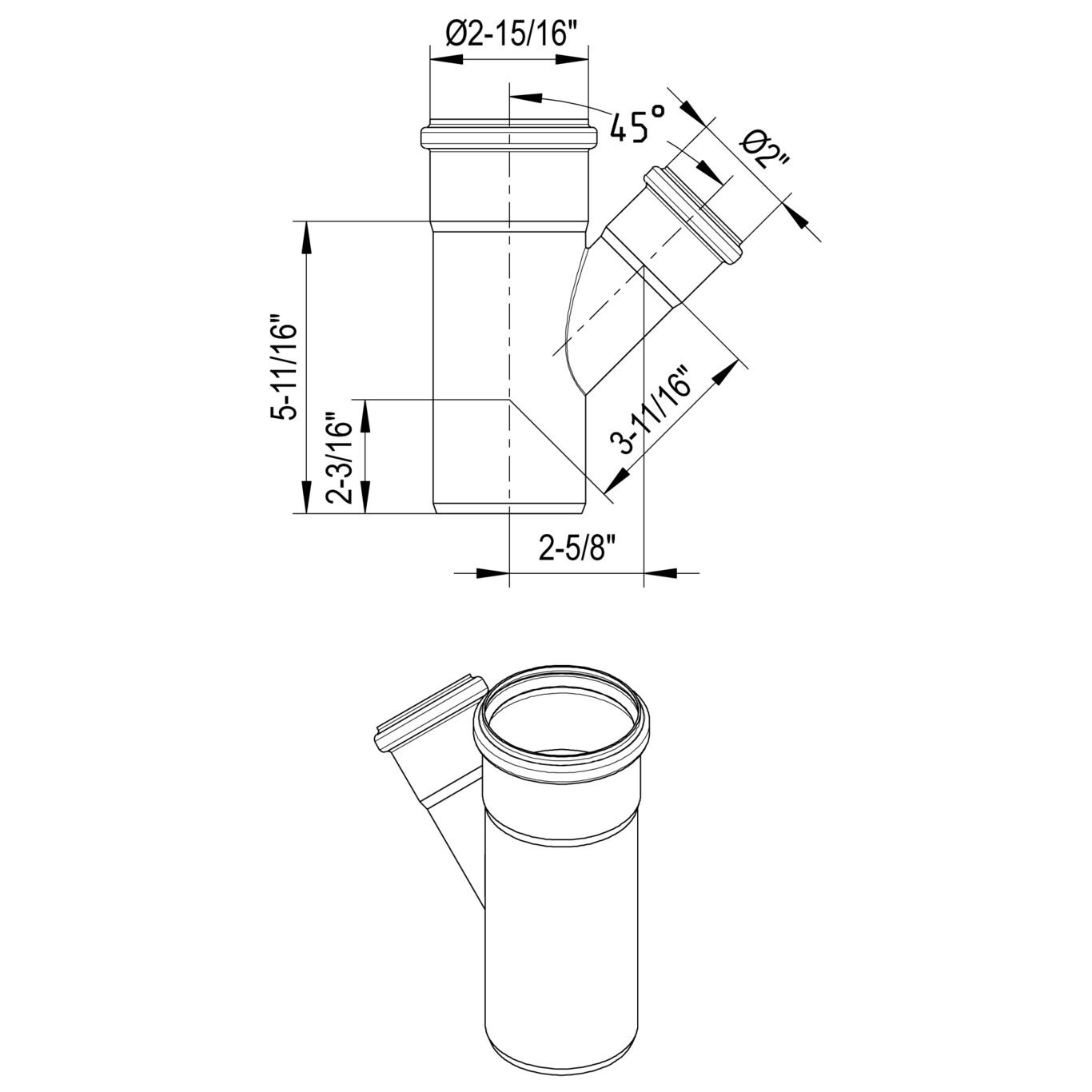

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 144 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 75 |
Outlet Diameter (Inch) | 3 |
Weight (kg) | 0.48 |
Weight (lbs) | 1.06 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia Achilles Certificate - 46702-22 Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products RU - 0212322 Pipes-21 KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev4, Sanitary discharge pipes RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings
