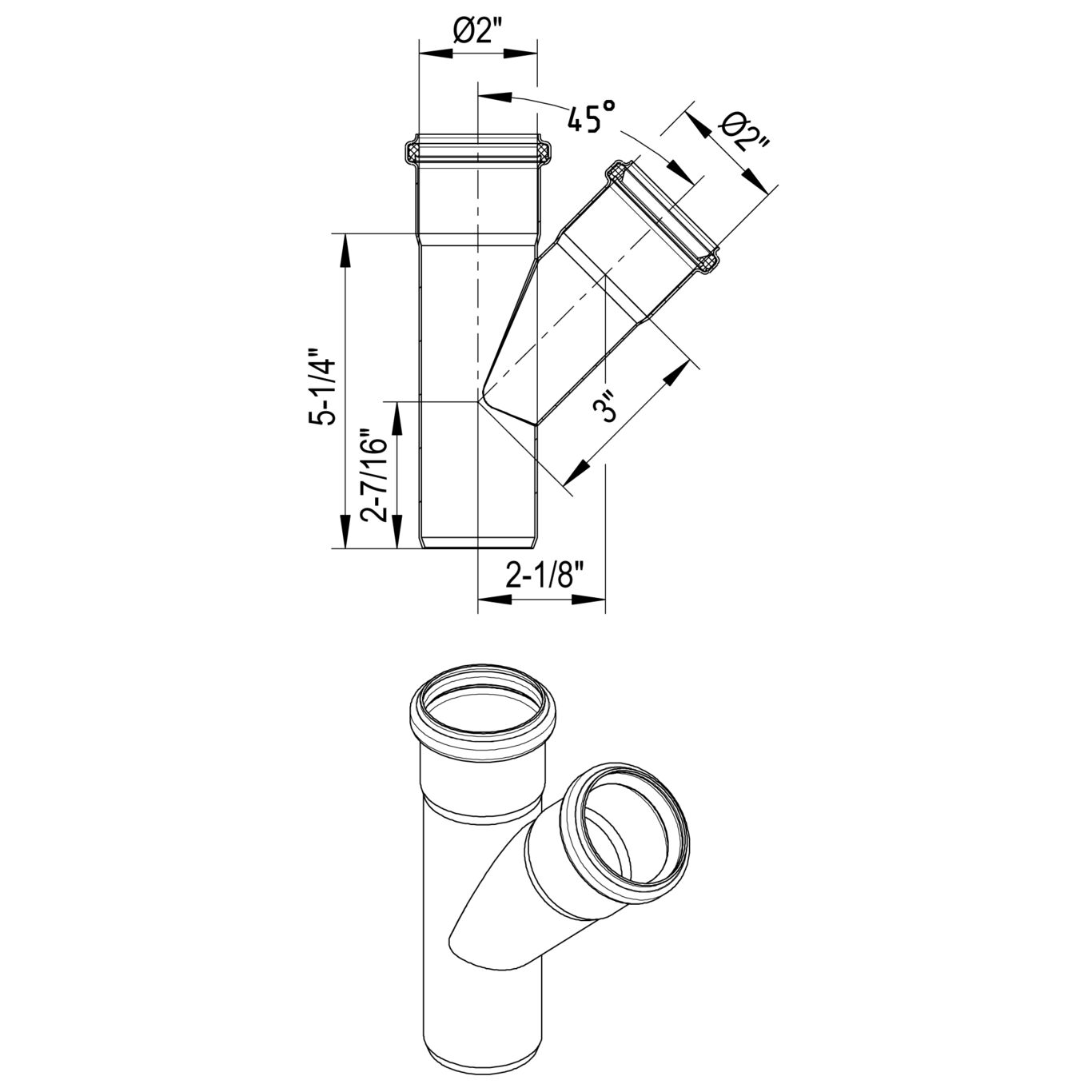

OBLIQUE BRANCH 45° - (838.050.050 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.050 S
EAN no.: 5705499402360
VVS no.: 160224350
RSK no.: 1550309
NRF no.: 2170783
LVI no.: 0251153
OBLIQUE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 133 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.32 |
| Weight (lbs) | 0.71 |
-
Approval Information
For approval information, please refer to the below approval certificates.
BLÜCHER® EuroPipe EPD
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - TÜV Rheinland R 60178453 0001
NO - 0692-22 EuroPipe RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA PL - Hygienic Certificate - All Products TÜRK LOYDU - 25041616077231247 UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702
