OBLIQUE BRANCH 45° - (838.040.050 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.040.050 S
EAN no.: 5705499413021
VVS no.: 160224349
RSK no.: 1552763
NRF no.: 2172628
LVI no.: 0251152

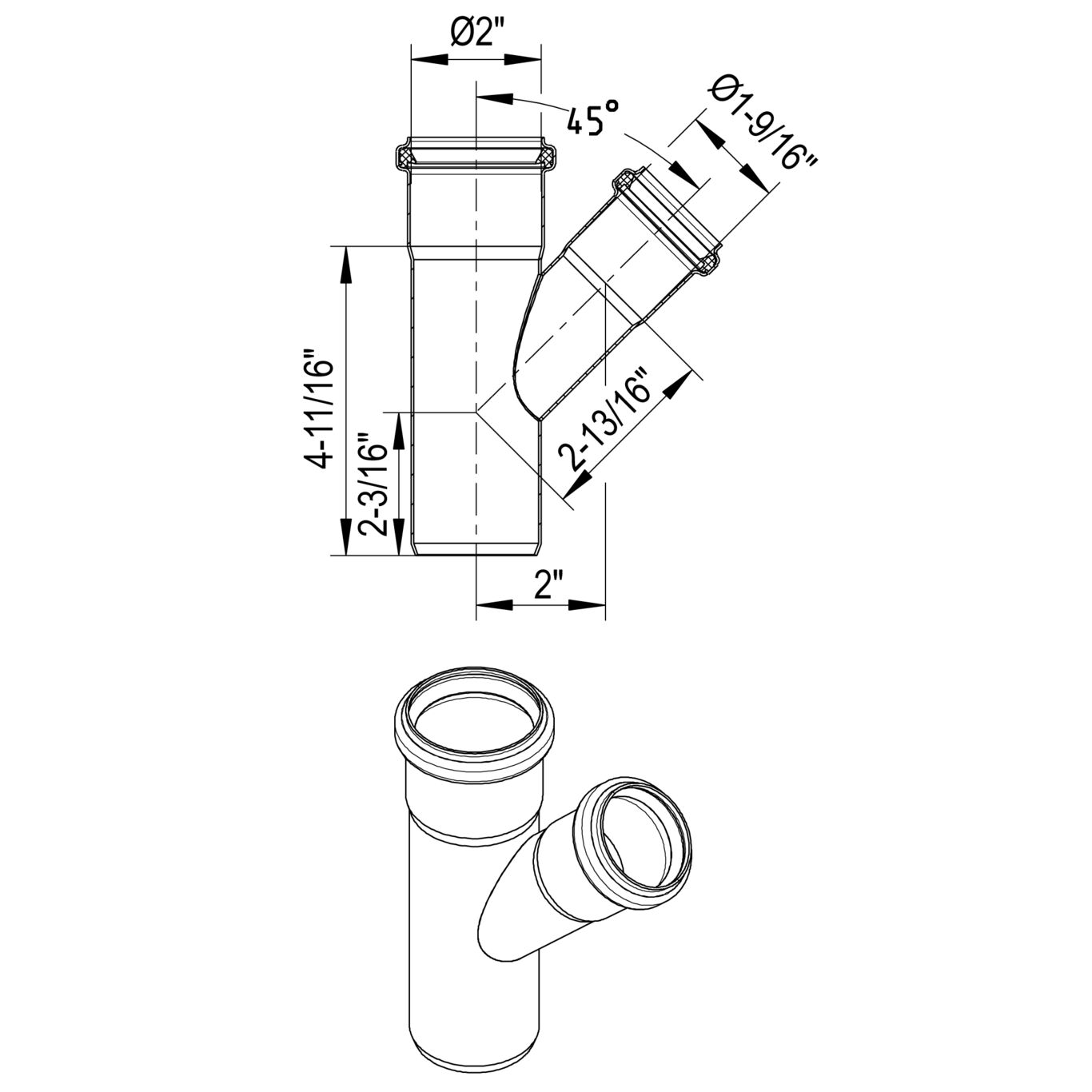

OBLIQUE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 119 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.3 |
| Weight (lbs) | 0.66 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - TÜV Rheinland R 60178453 0001
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA
