OBLIQUE BRANCH 45° - (838.040.050)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.040.050
EAN no.: 5705499413014
VVS no.: 160224049
RSK no.: 1552789
NRF no.: 2171209
LVI no.: 0241152

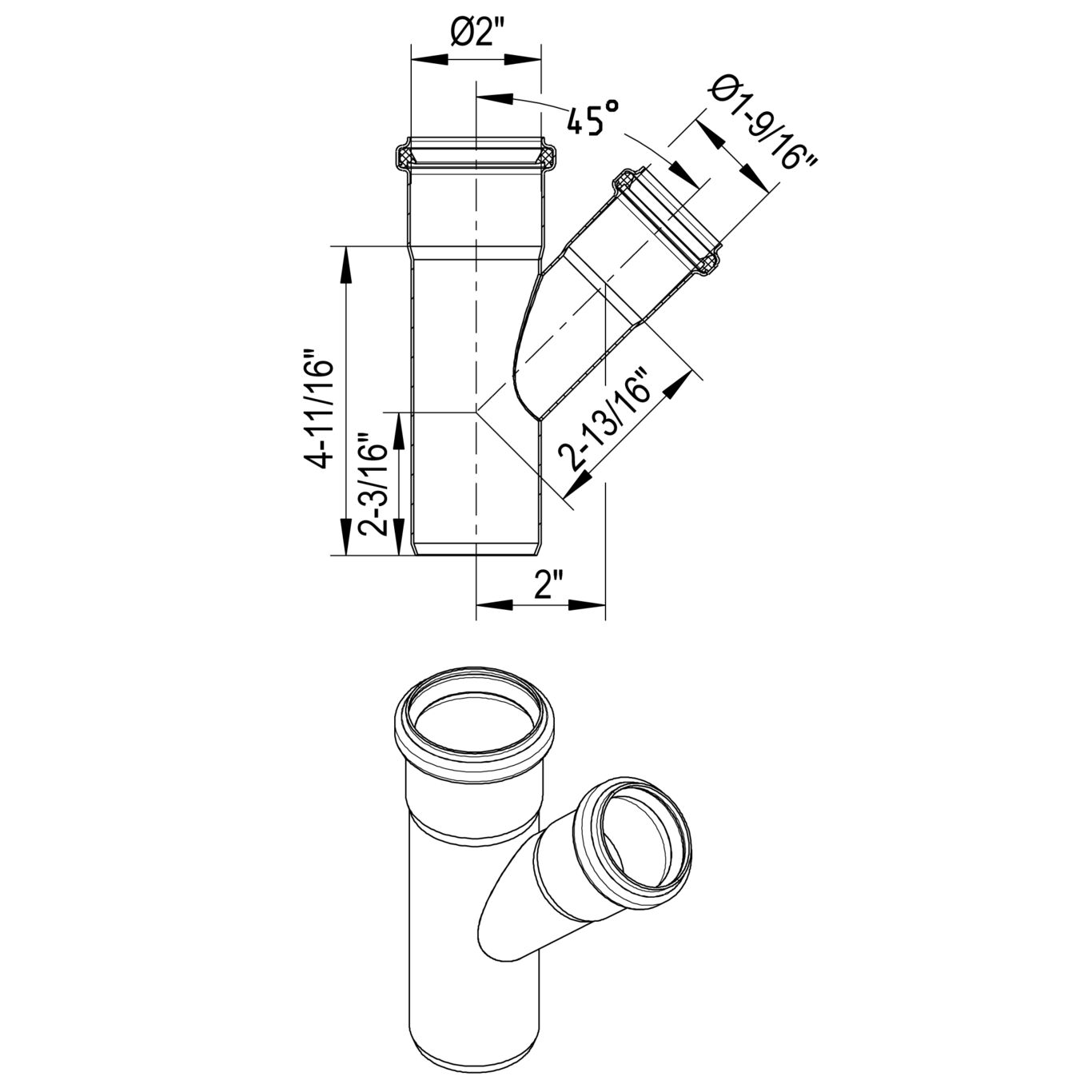

OBLIQUE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 119 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.3 |
| Weight (lbs) | 0.66 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - TÜV Rheinland R 60178453 0001
US - IAPMO File No.3247-EuroPipe KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings TÜRK LOYDU - 25041616077231247 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products Achilles Certificate - 46702
