BEND 89° - (820.090.050 AS)
×
![]()
Part Of the Series: Bend-89
Type no.: 820.090.050 AS
EAN no.: 5705499408690
NRF no.: 2172529

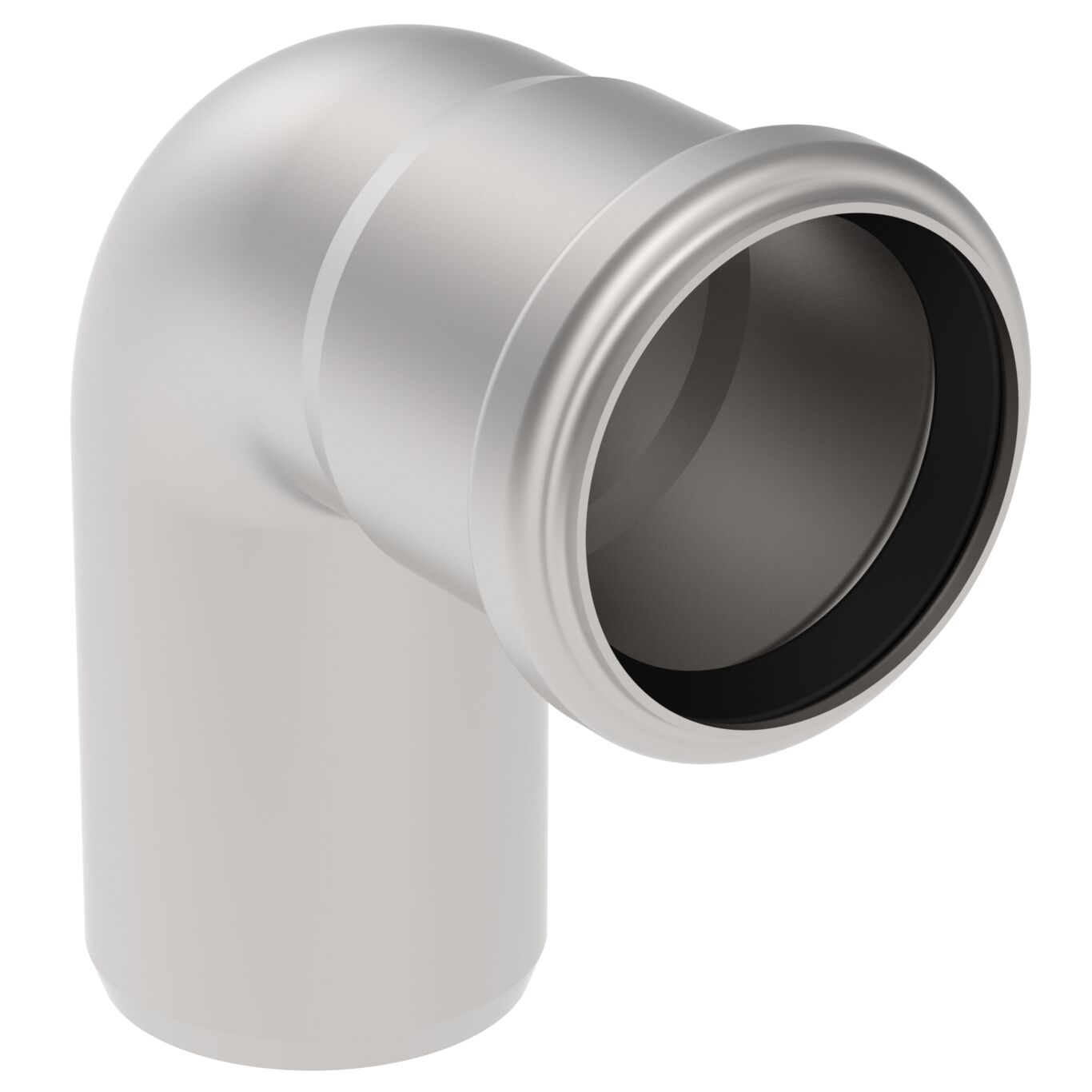

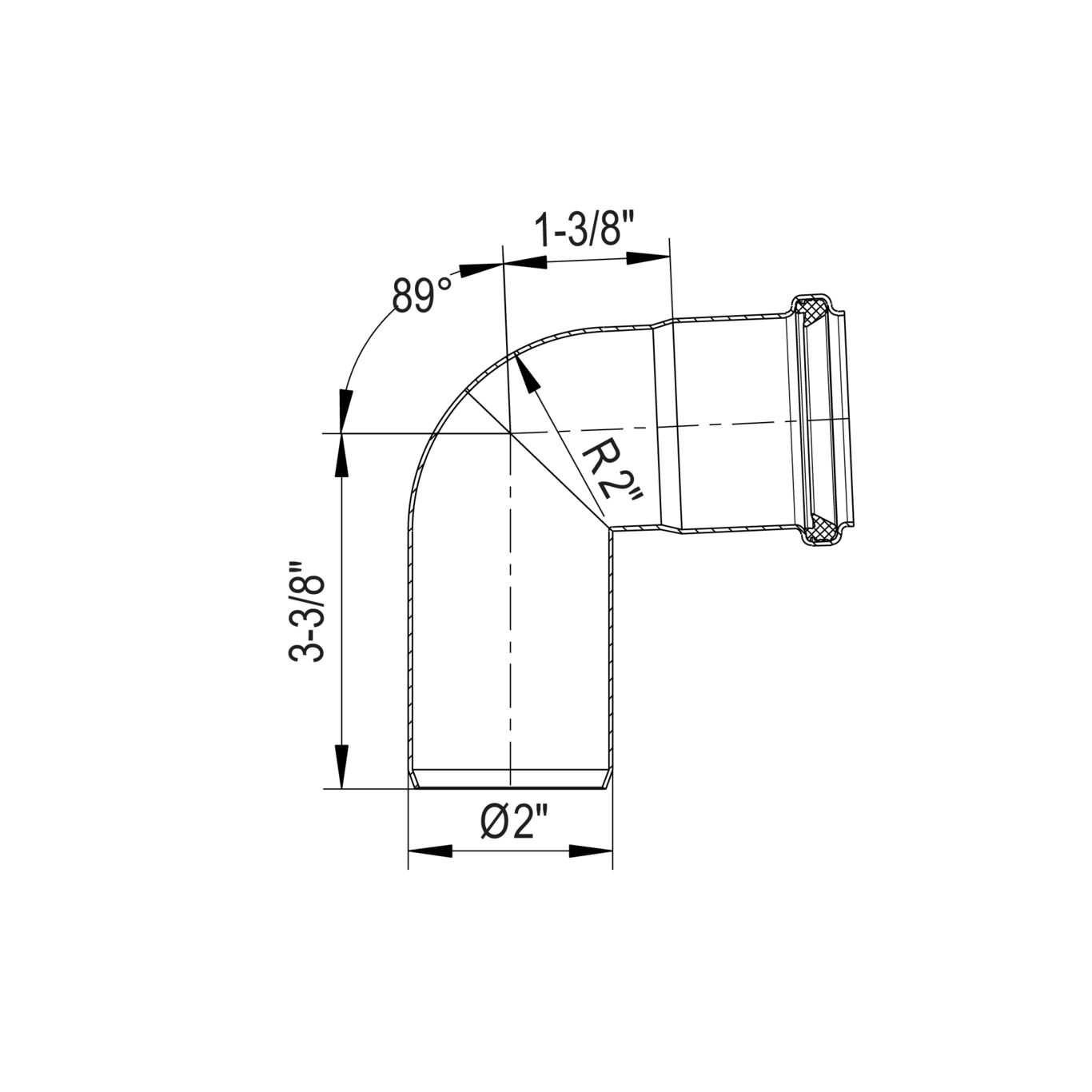

BEND 89°
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.21 |
| Weight (lbs) | 0.46 |
-
Approval Information
For approval information, please refer to the below approval certificates.
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Europe
BLÜCHER® EuroPipe EPD
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002 PL - Hygienic Certificate - All Products Achilles Certificate - 46702 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe TÜRK LOYDU - 25041616077231247
