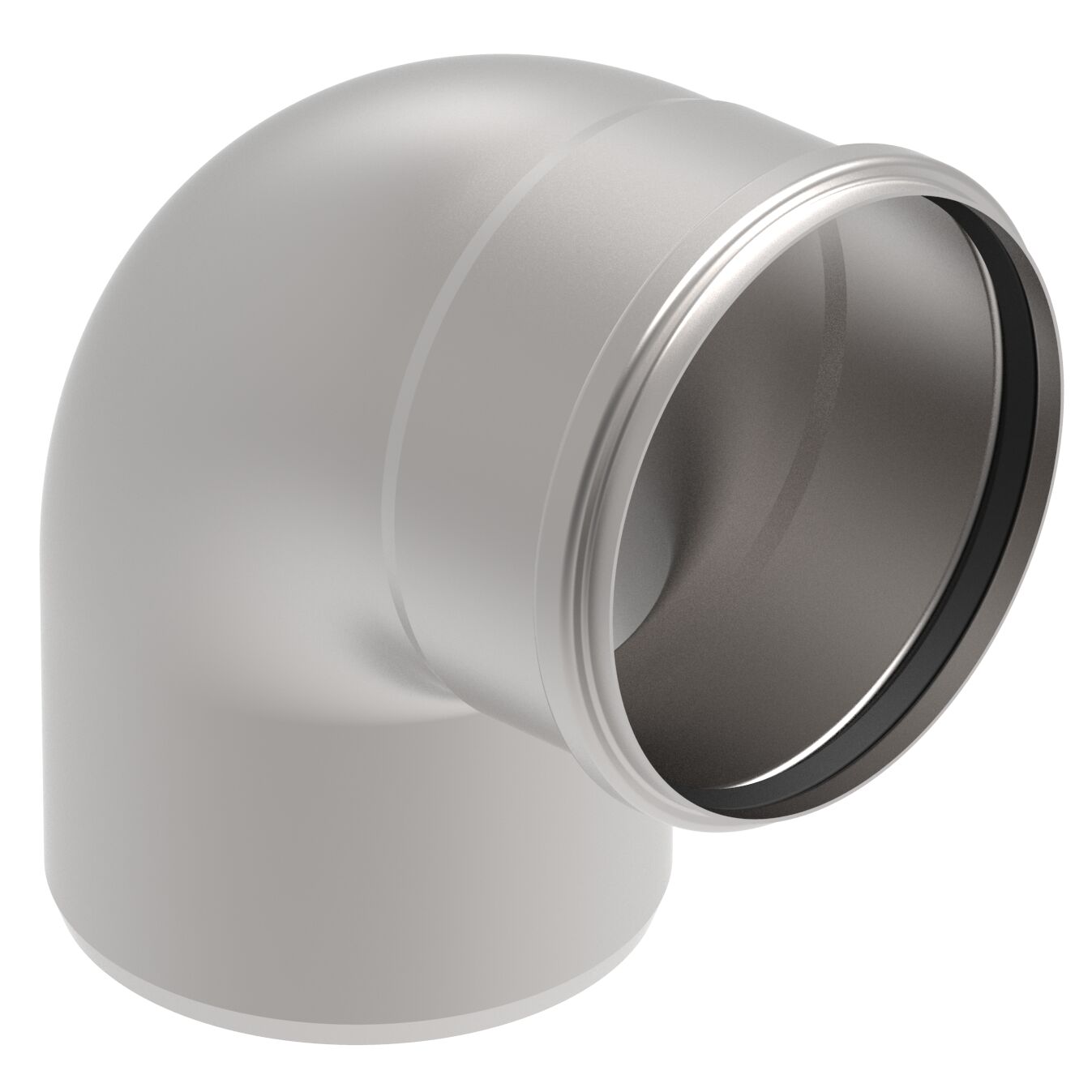

BEND 87.5° - (820.090.200 S)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.200 S
EAN no.: 5705499414042
VVS no.: 160201501
RSK no.: 1551545
NRF no.: 2172535
LVI no.: 0250836

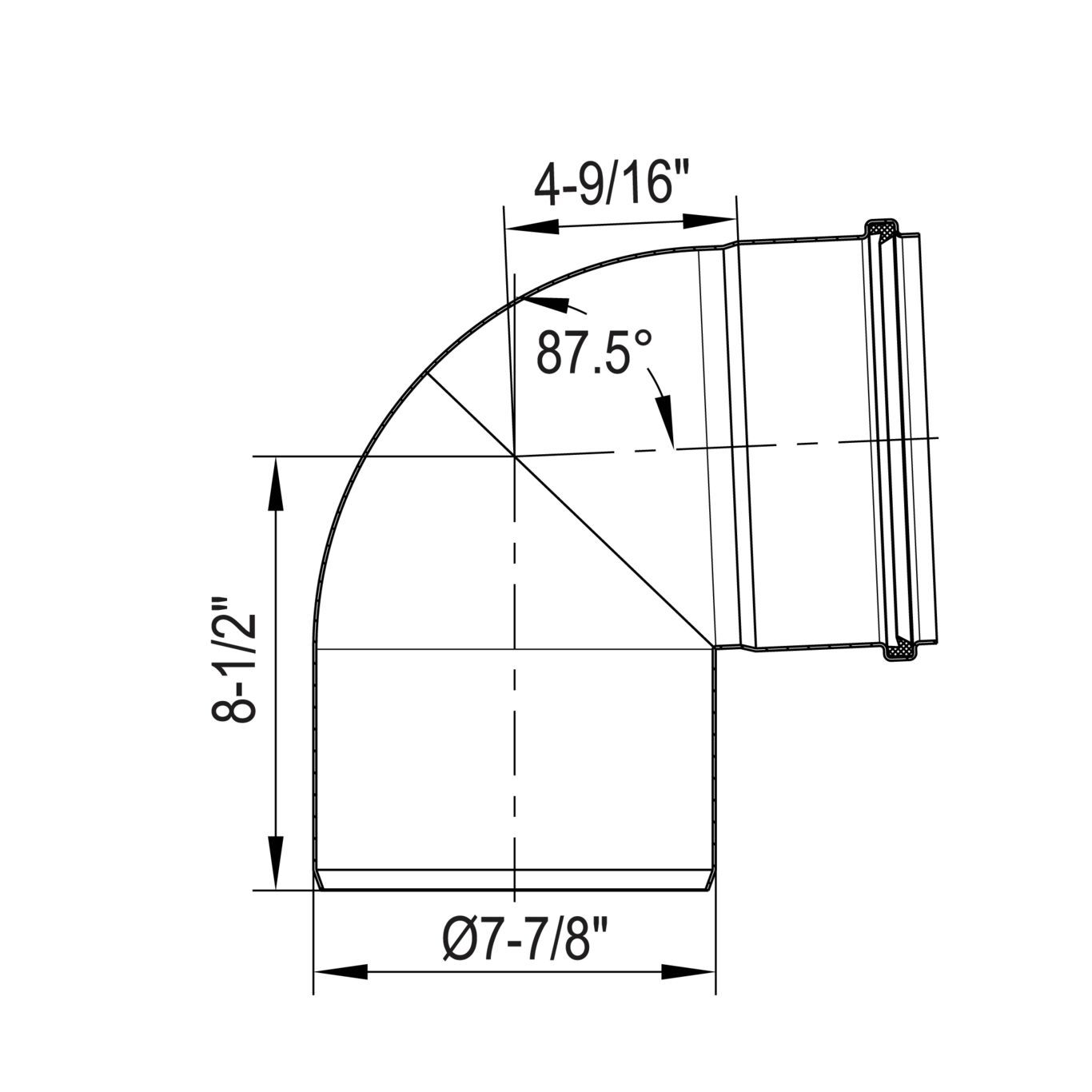

BEND 87.5°
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 3 |
| Weight (lbs) | 6.61 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
DK - VA 2.12/19350
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA Lloyds Register LR22419510TA Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains
