BEND 87.5° - (820.090.110)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.110
EAN no.: 5705499401424
VVS no.: 160201110
RSK no.: 1550087
NRF no.: 2170066
LVI no.: 0240834

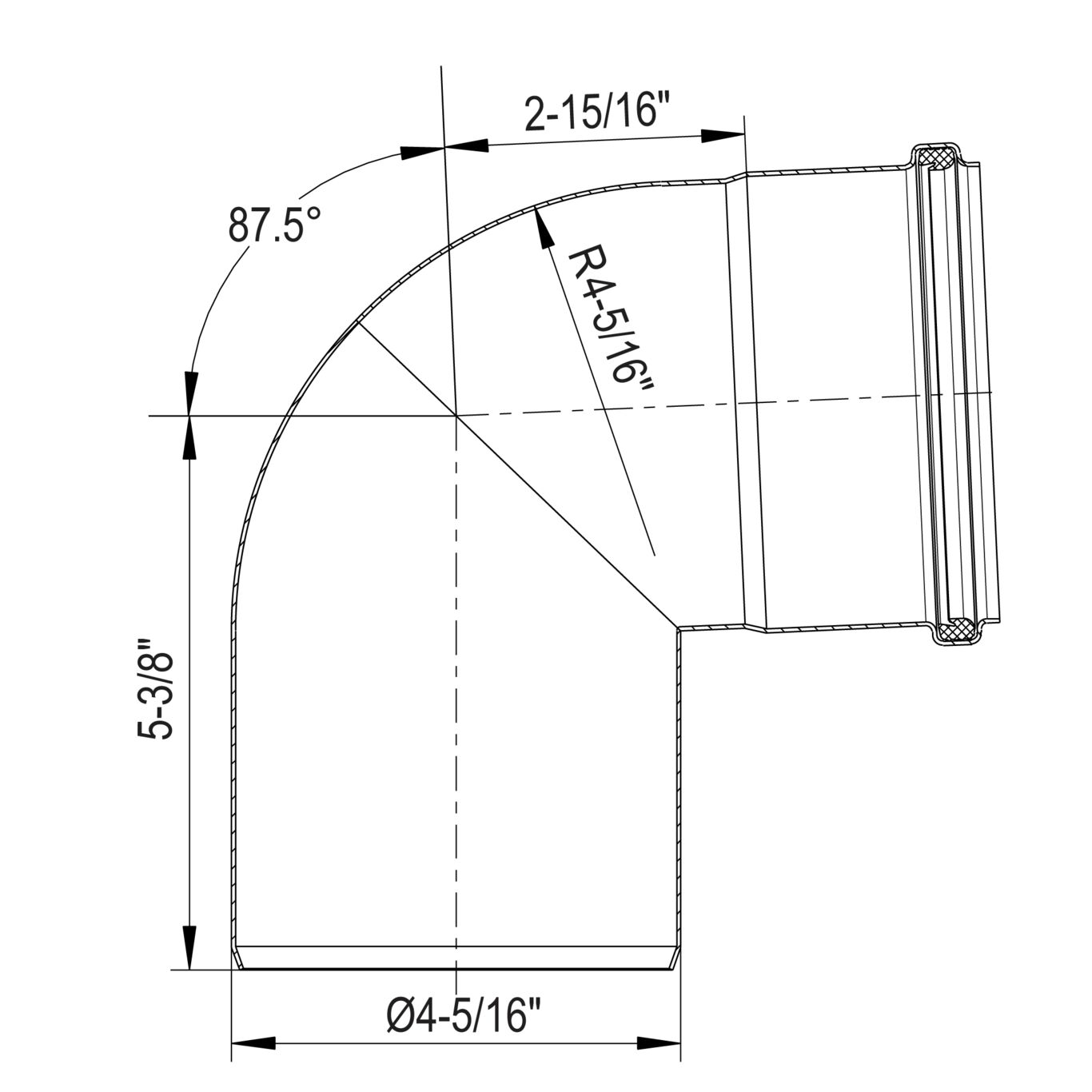

BEND 87.5°
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.67 |
| Weight (lbs) | 1.48 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19350
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains ABS - LD1716353-PDA PL - Hygienic Certificate - All Products
