BEND 87.5° - (820.090.075 S)
Part Of the Series: Bend-87.5
Type no.: 820.090.075 S
EAN no.: 5705499401417
VVS no.: 160201375
RSK no.: 1550286
NRF no.: 2170765
LVI no.: 0250833

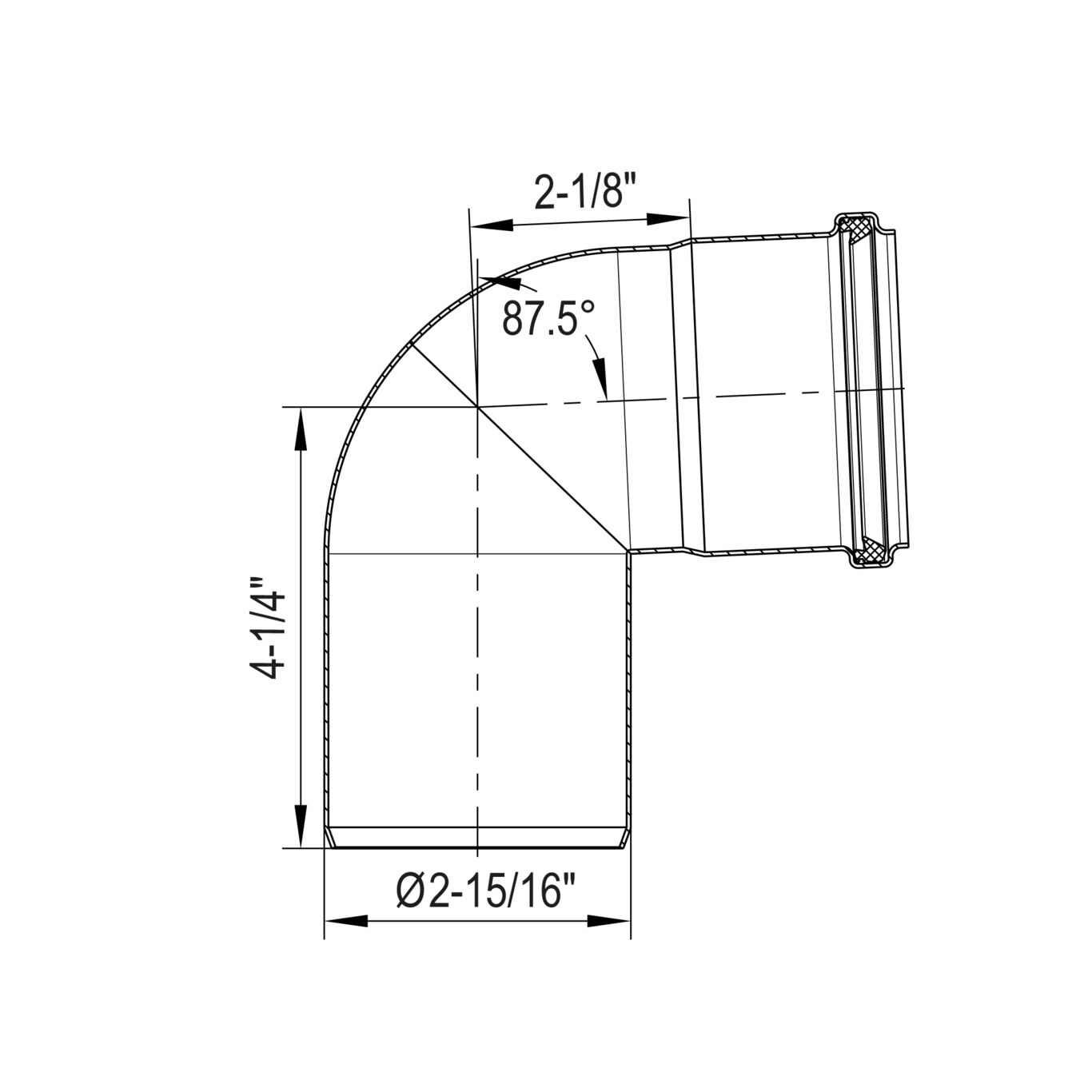

BEND 87.5°
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 75 |
Outlet Diameter (Inch) | 3 |
Weight (kg) | 0.39 |
Weight (lbs) | 0.86 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes
