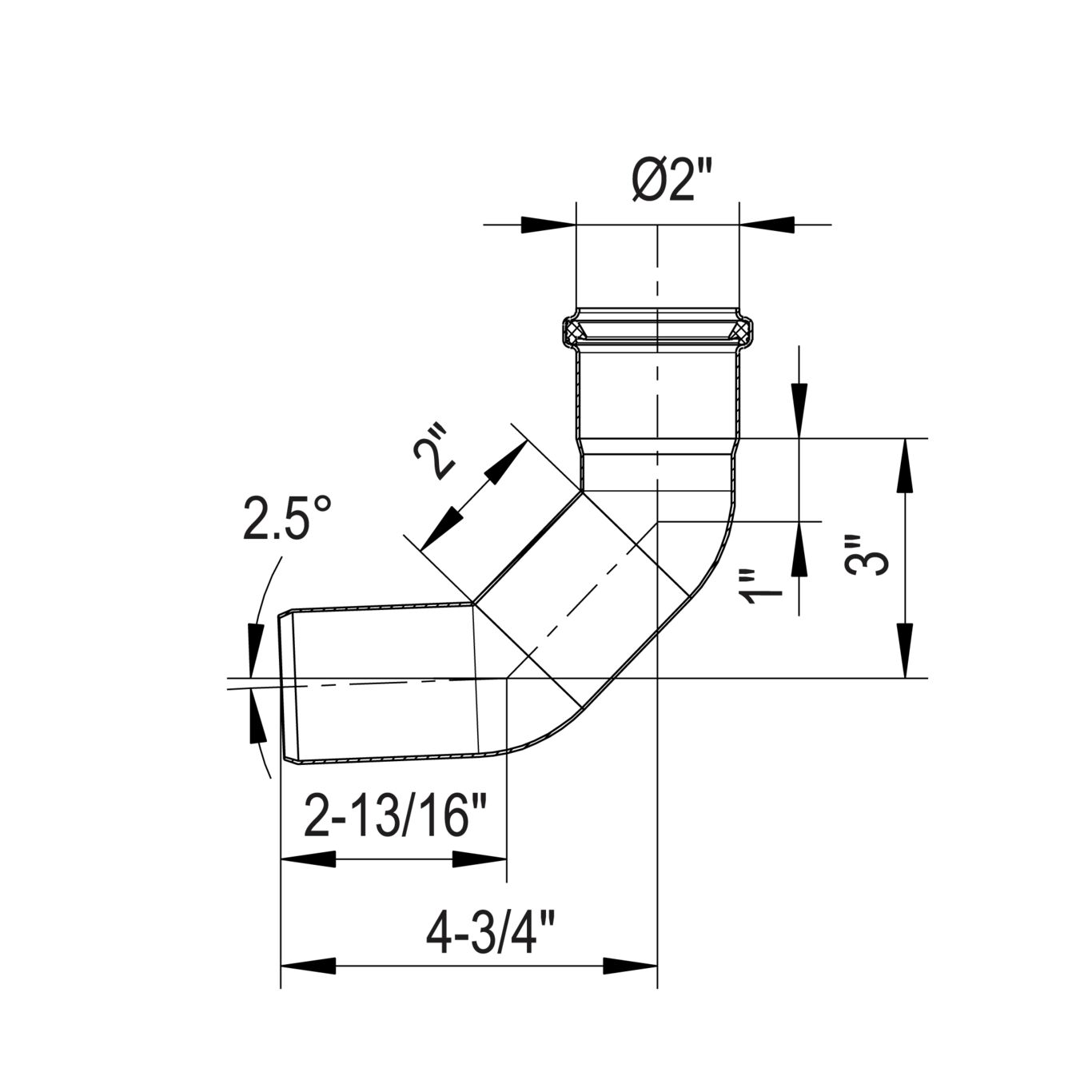

BEND, LONG 87.5°, 50 MM - (821.000.050 S)

Part Of the Series: Bend-87.5-long radius

Type no.: 821.000.050 S

EAN no.: 5705499404012

RSK no.: 1551559

NRF no.: 2172536


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Angle (°) 87.5
Length (mm) 77
Material AISI 316L
Material (EN) EN 1.4404
Outlet dia. (mm) 50
Outlet Diameter (Inch) 2
Weight (kg) 0.3
Weight (lbs) 0.66
