BEND, LONG 87.5°, 250 MM - (821.090.075)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.075
EAN no.: 5705499408775
RSK no.: 1550081
NRF no.: 2172317
LVI no.: 0240853

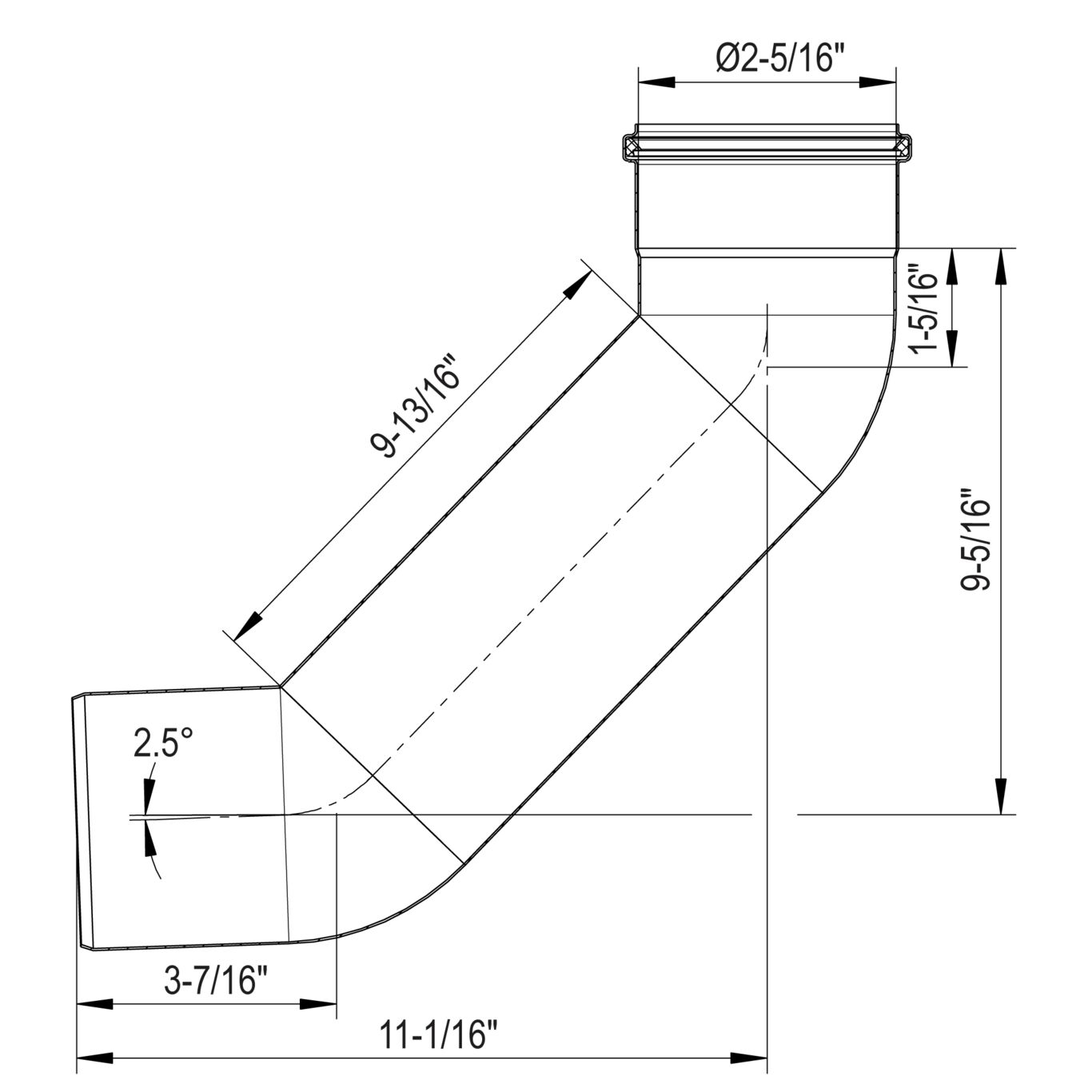

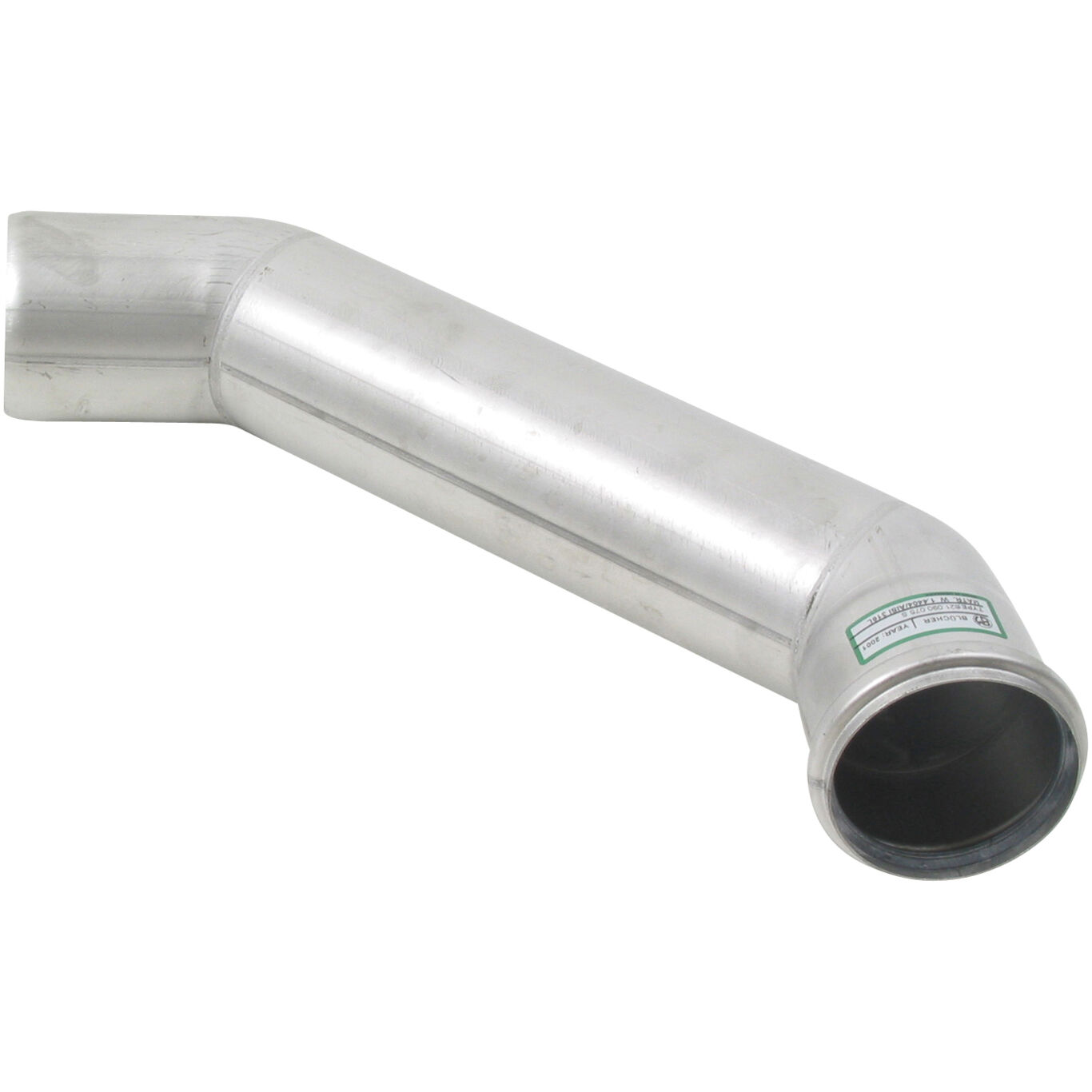

BEND, LONG 87.5°, 250 MM
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 234 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 75 |
Outlet Diameter (Inch) | 3 |
Weight (kg) | 0.9 |
Weight (lbs) | 1.98 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 Lloyds Register LR22419510TA
