BEND, LARGE RADIUS 87.5° - (825.090.250 S)
×
![]()
Part Of the Series: Bend-87.5-large radius
Type no.: 825.090.250 S
EAN no.: 5705499121629
VVS no.: 160201550
RSK no.: 1552154
NRF no.: 2172555
LVI no.: 0256020

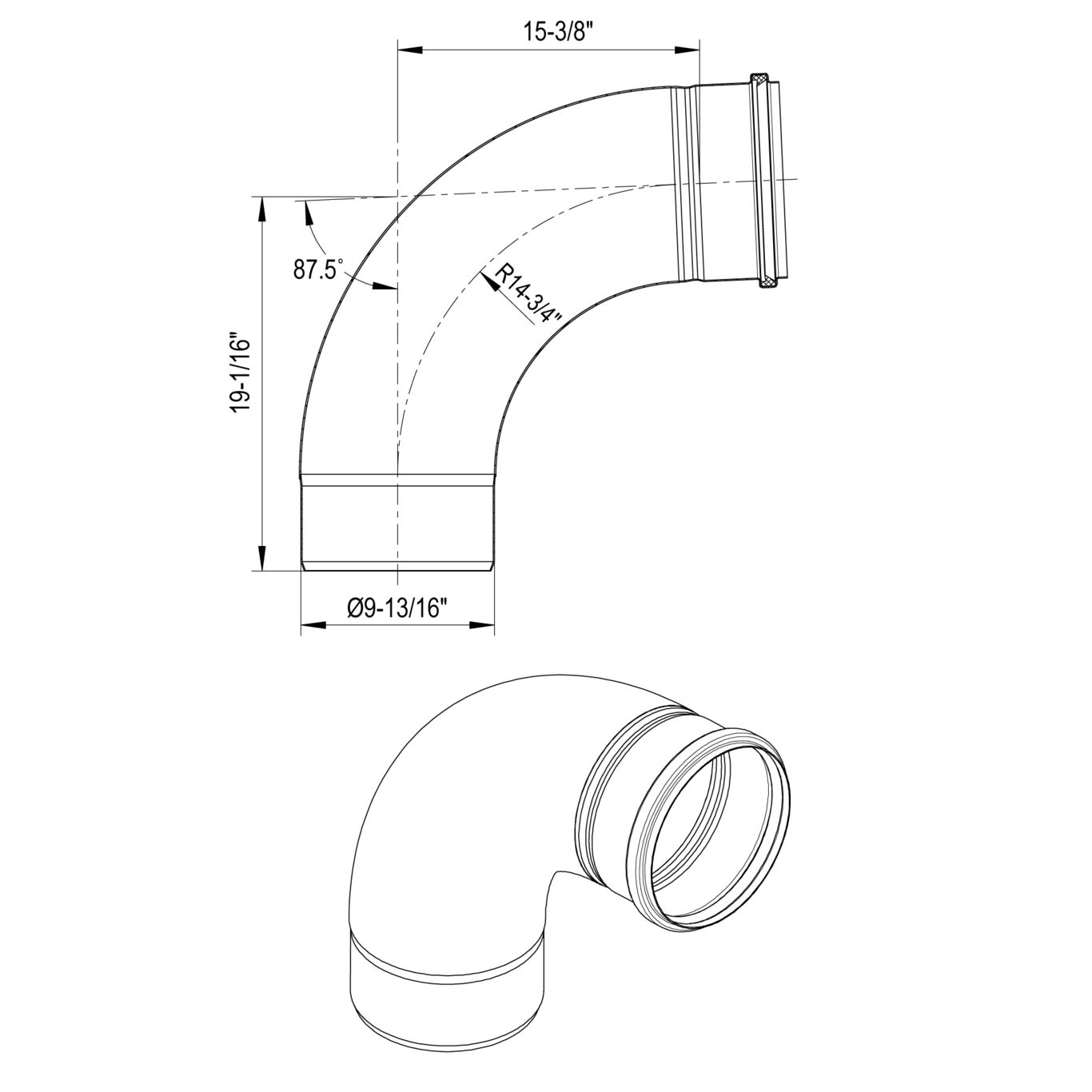

BEND, LARGE RADIUS 87.5°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Weight (kg) | 9.88 |
| Weight (lbs) | 21.78 |
-
Approval Information
For approval information, please refer to the below approval certificates.
