BEND, LARGE RADIUS 87.5° - (825.090.200 S)
×
![]()
Part Of the Series: Bend-87.5-large radius
Type no.: 825.090.200 S
EAN no.: 5705499411423
VVS no.: 160201500
NRF no.: 2170779
LVI no.: 0256019

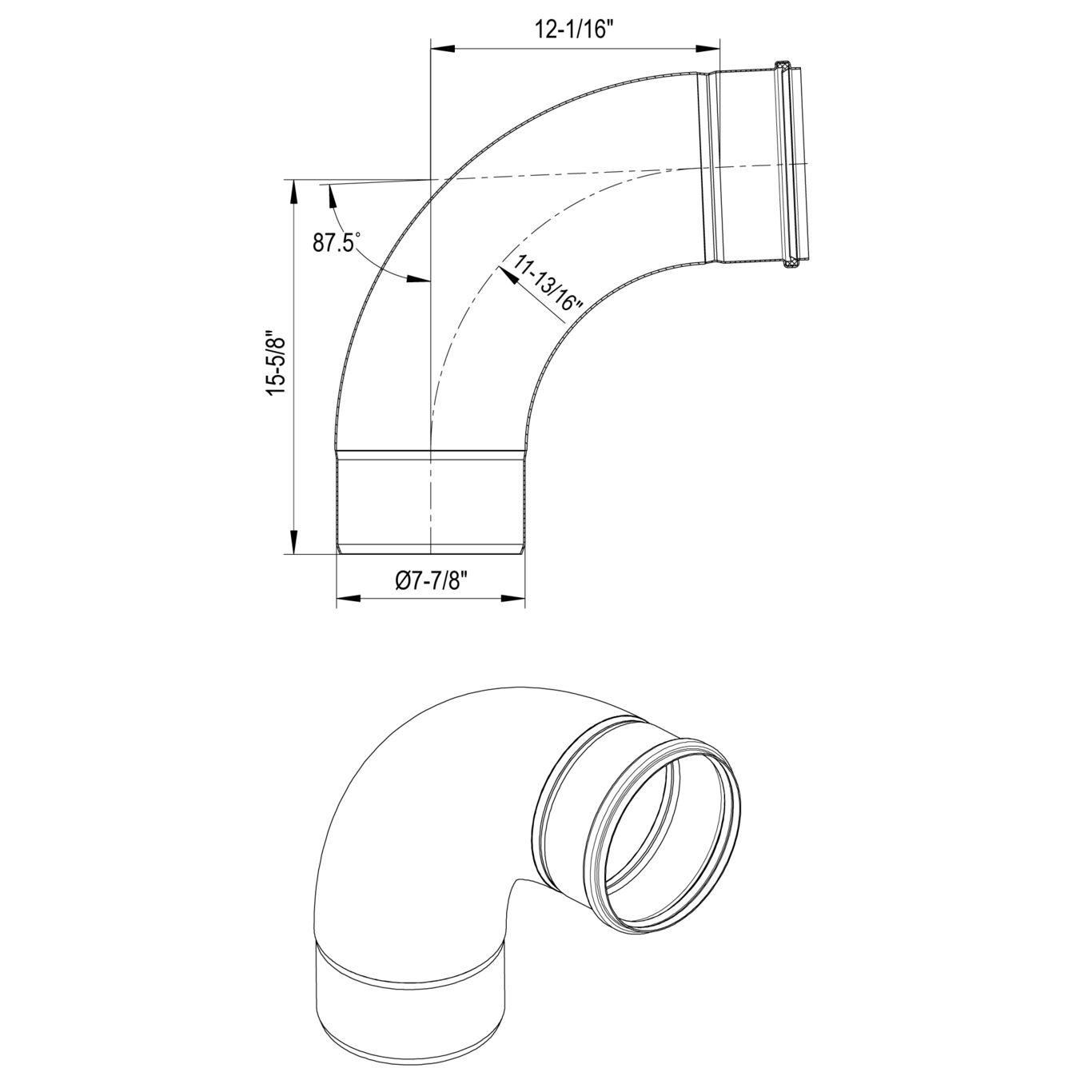

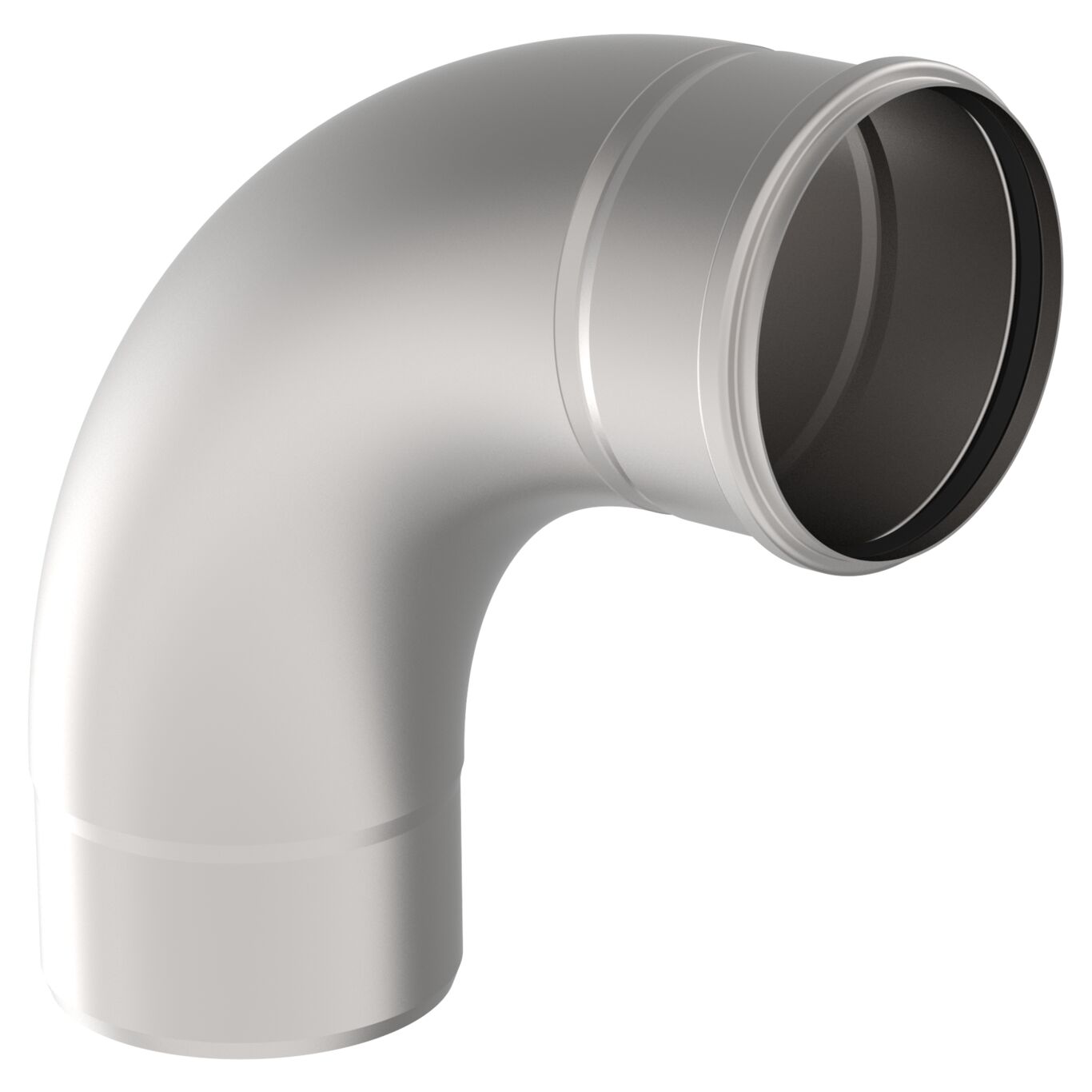

BEND, LARGE RADIUS 87.5°
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 6.41 |
| Weight (lbs) | 14.13 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
