BEND 45° - (820.045.250 S)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.250 S
EAN no.: 5705499414028

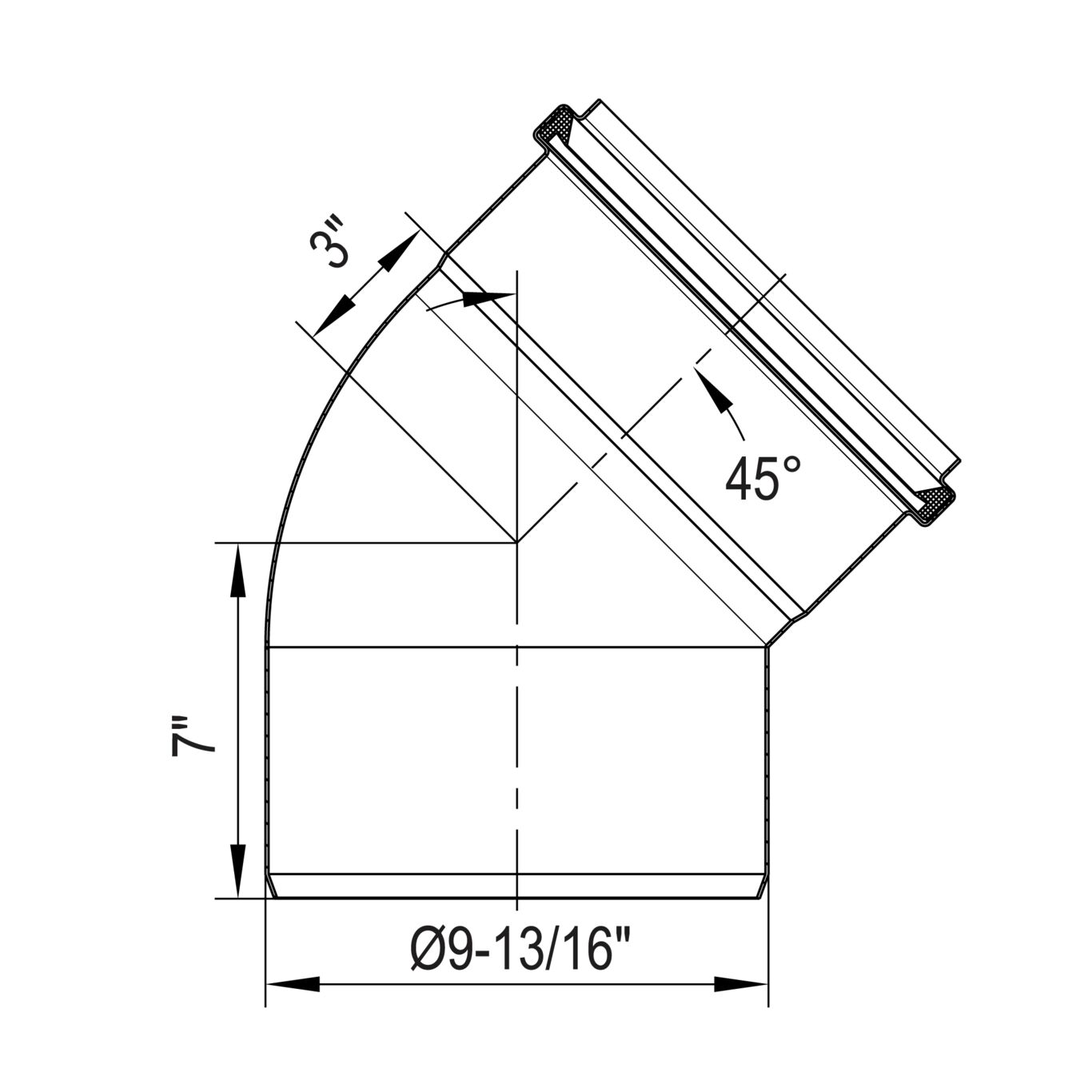

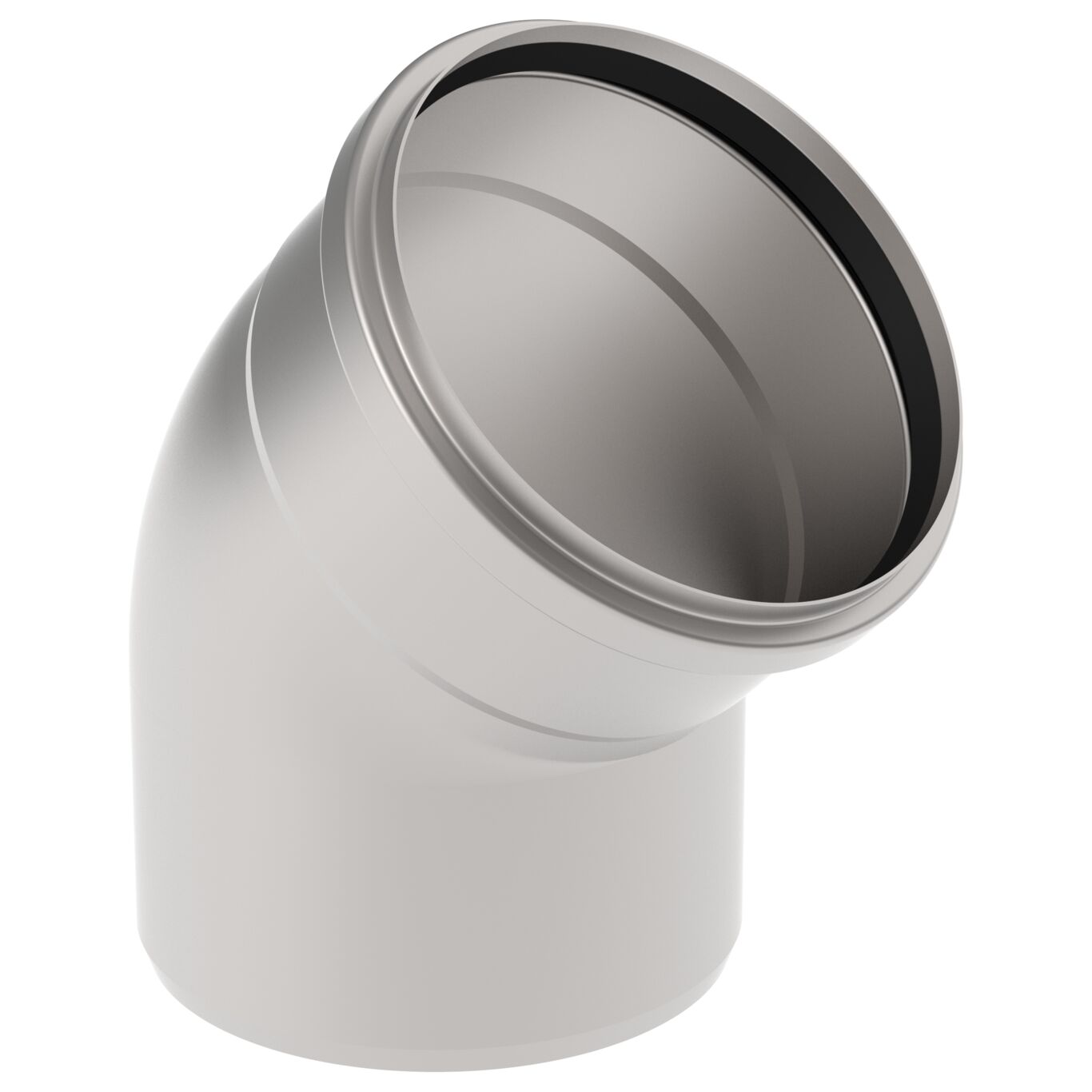

BEND 45°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Weight (kg) | 3.69 |
| Weight (lbs) | 8.14 |
-
Approval Information
For approval information, please refer to the below approval certificates.
BLÜCHER® EuroPipe EPD
DK - VA 2.12/19349 EuroPipe DS432
Declaration of Perfomance EN1124-1-001
Declaration of Perfomance BS-EN1124-1-002
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - TÜV Rheinland R 60178453 0001
NO - 0692-22 EuroPipe PL - Hygienic Certificate - All Products TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 UR - 1055745 Product approval, EuroPipe and Drains
