BEND 45° - (820.045.075)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.075
EAN no.: 5705499401325
VVS no.: 160205075
RSK no.: 1550090
NRF no.: 2170055
LVI no.: 0240683

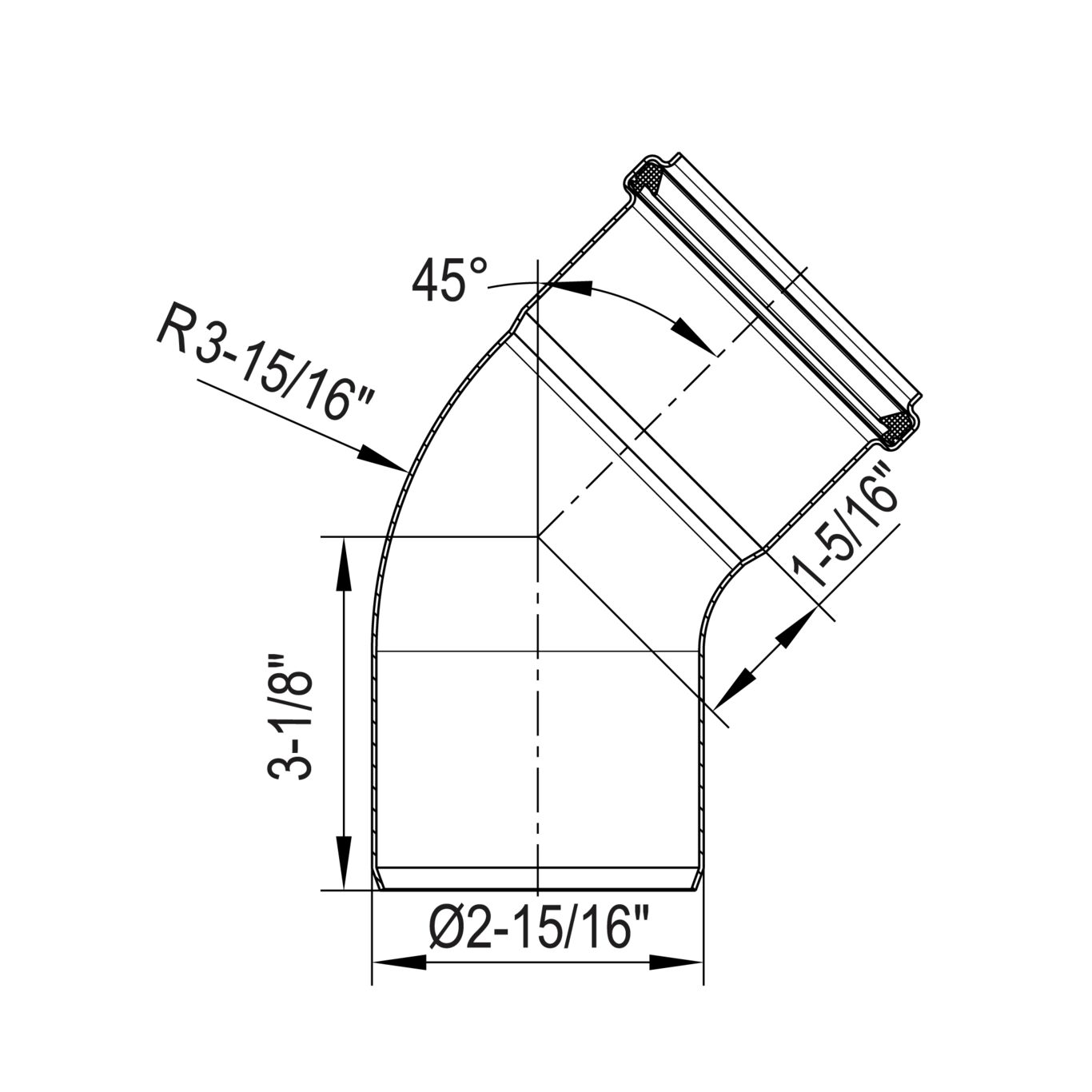

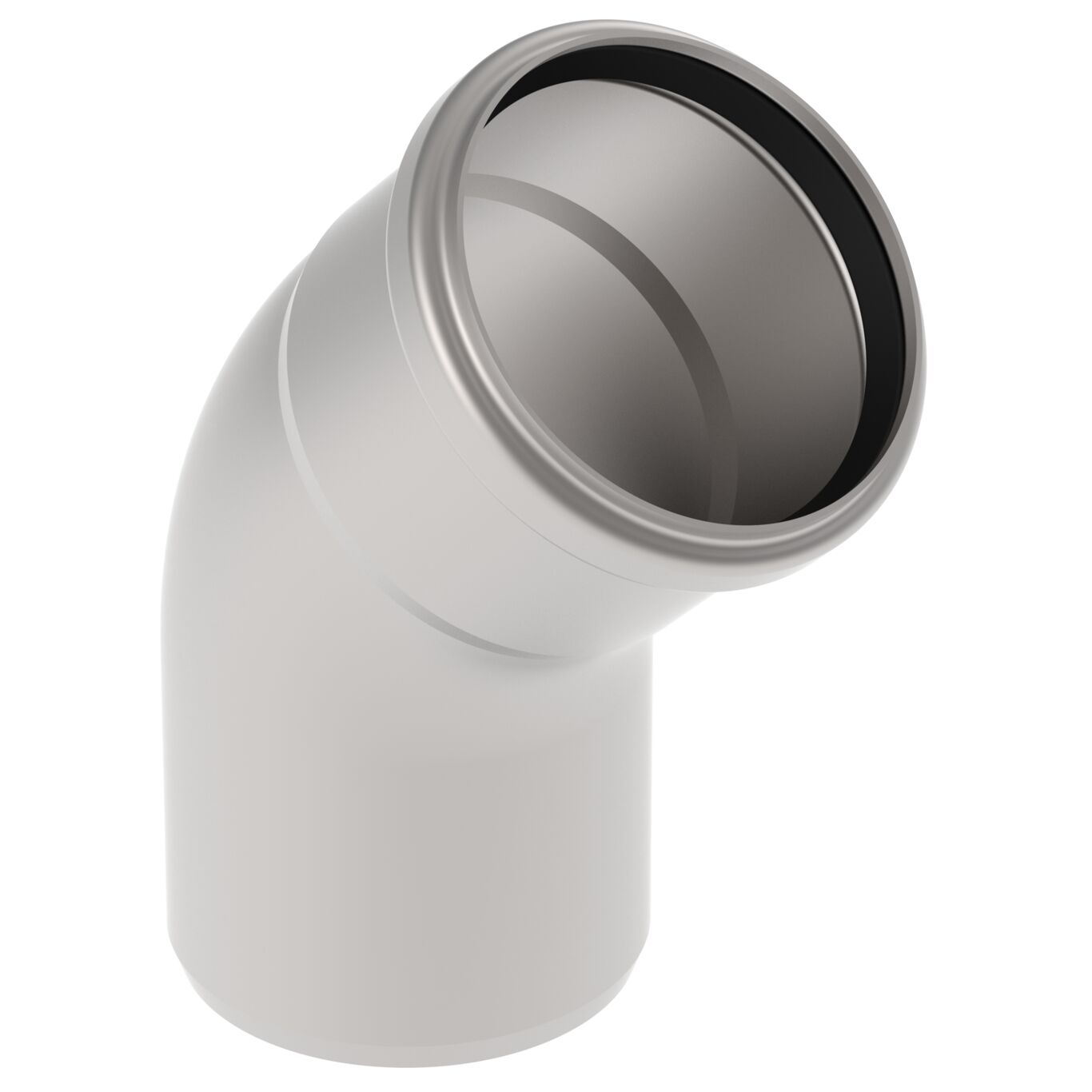

BEND 45°
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.3 |
| Weight (lbs) | 0.66 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains
