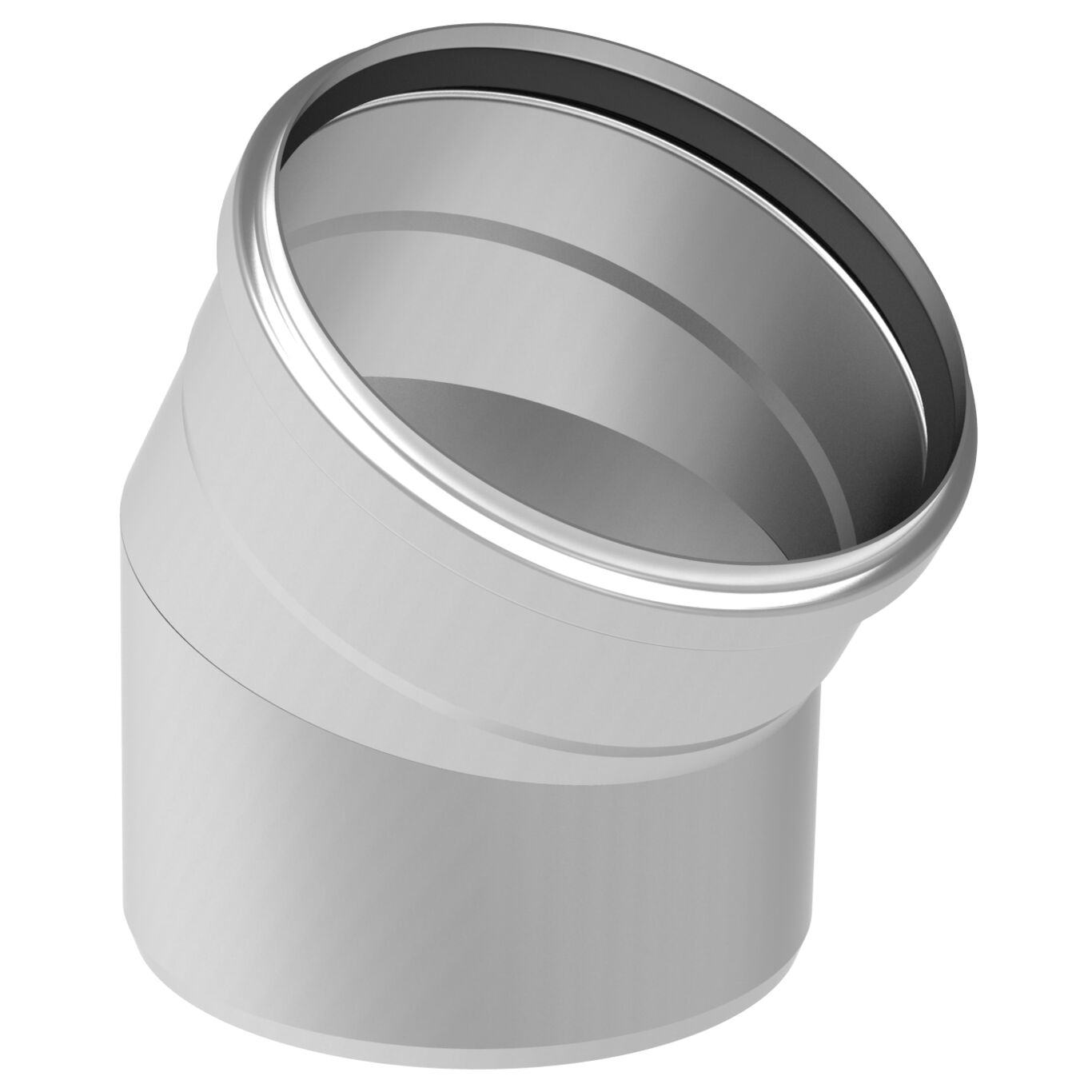

BEND 30° - (820.030.315 S)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.315 S
EAN no.: 5705499413823
VVS no.: 160207615
NRF no.: 2172523

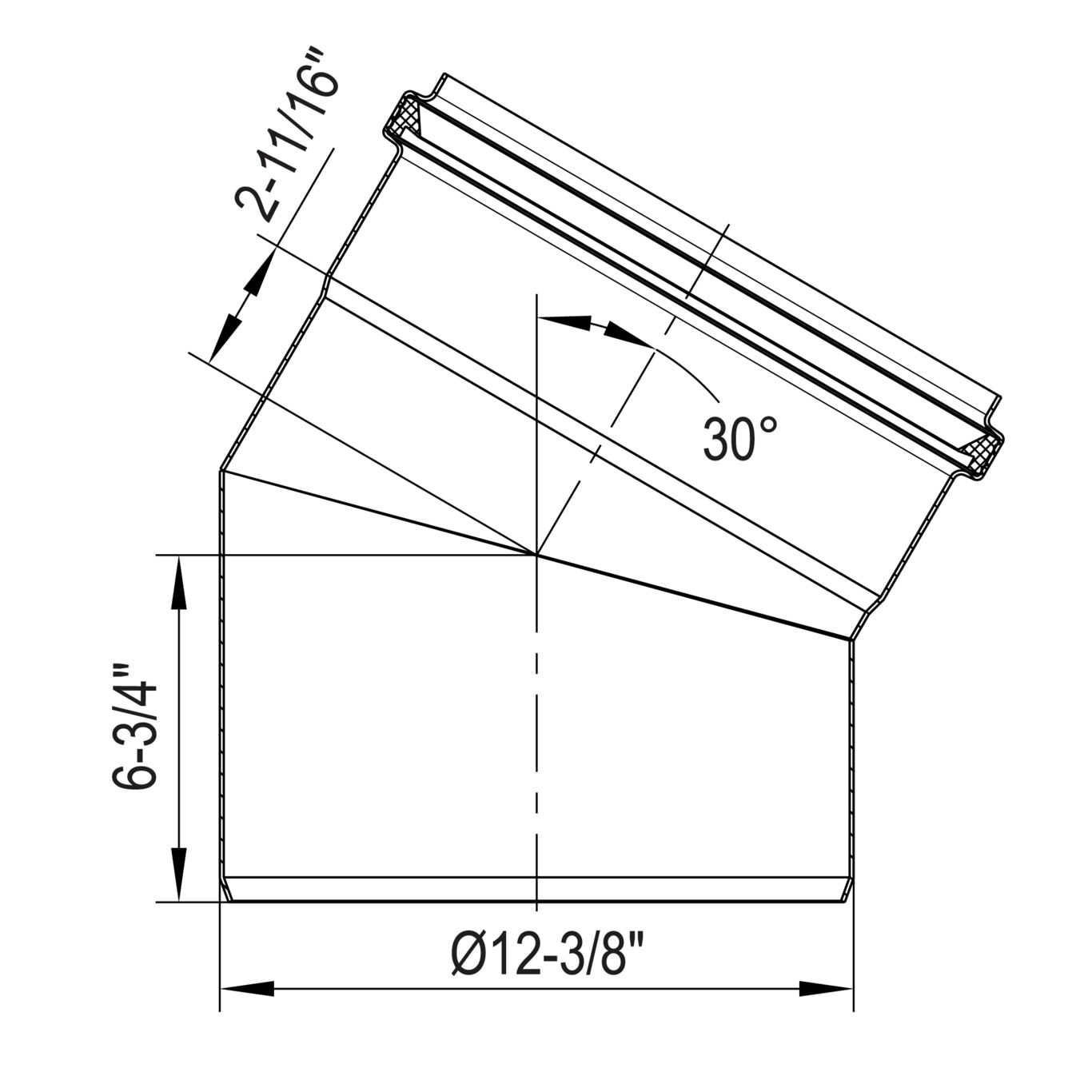

BEND 30°
-Diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 315 |
| Outlet Diameter (Inch) | 12 |
| Weight (kg) | 6.18 |
| Weight (lbs) | 13.62 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
BLÜCHER® EuroPipe EPD
DE - TÜV Rheinland R 60178453 0001
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
