BEND 30° - (820.030.110 S)
Part Of the Series: Bend-30
Type no.: 820.030.110 S
EAN no.: 5705499401271
VVS no.: 160207410
RSK no.: 1550295
NRF no.: 2170746
LVI no.: 0250634

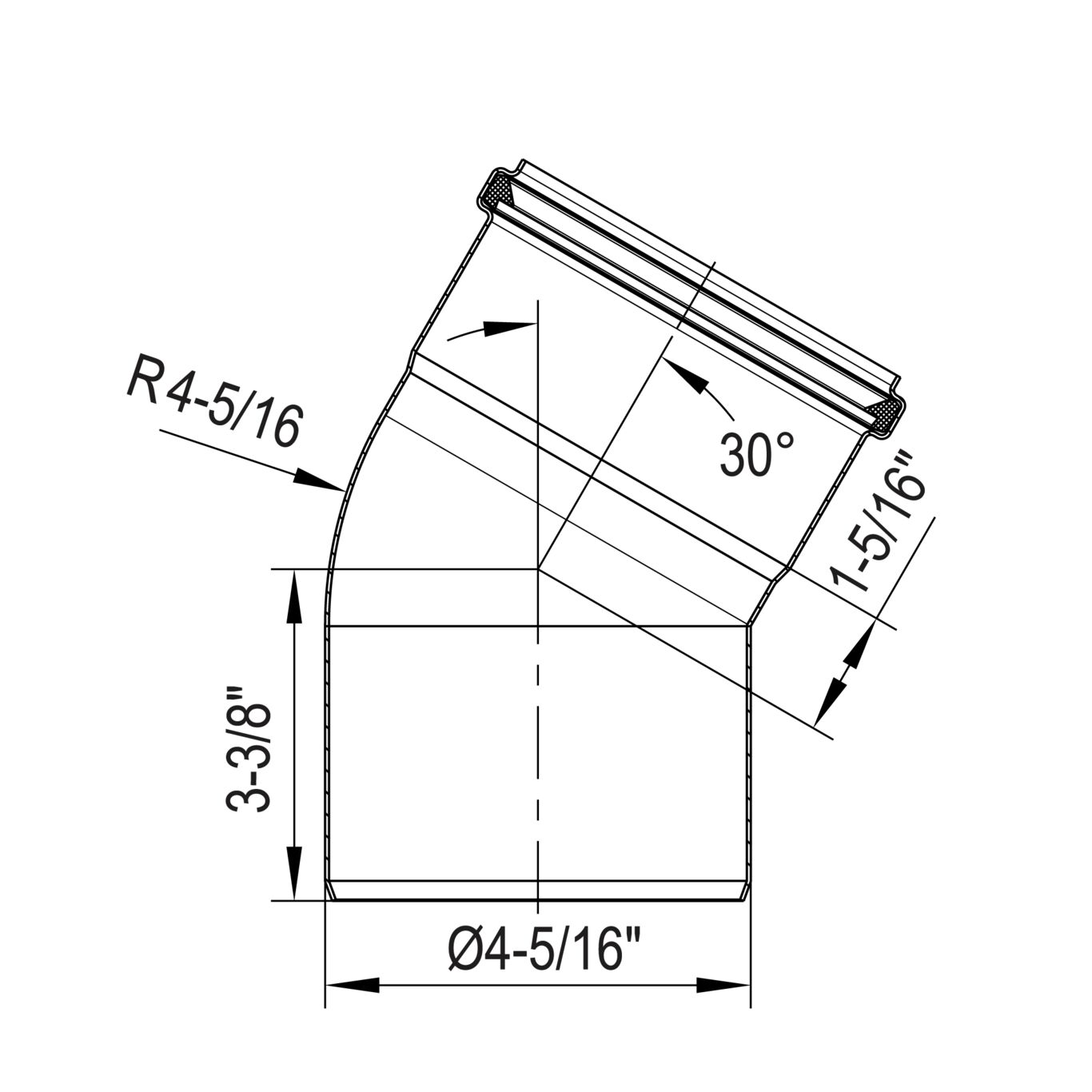

BEND 30°
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 30 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Weight (kg) | 0.51 |
Weight (lbs) | 1.12 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432 FR - DTA 14.1/12-1811_V3 EuroPipe NO - 0692-22 EuroPipe DK - VA 2.12/19350 DE - LGA Certificate 57214035 a AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA
