BEND 22.5° - (820.023.160 S)
×
![]()
Part Of the Series: Bend-22.5
Type no.: 820.023.160 S
EAN no.: 5705499408645
NRF no.: 2172518

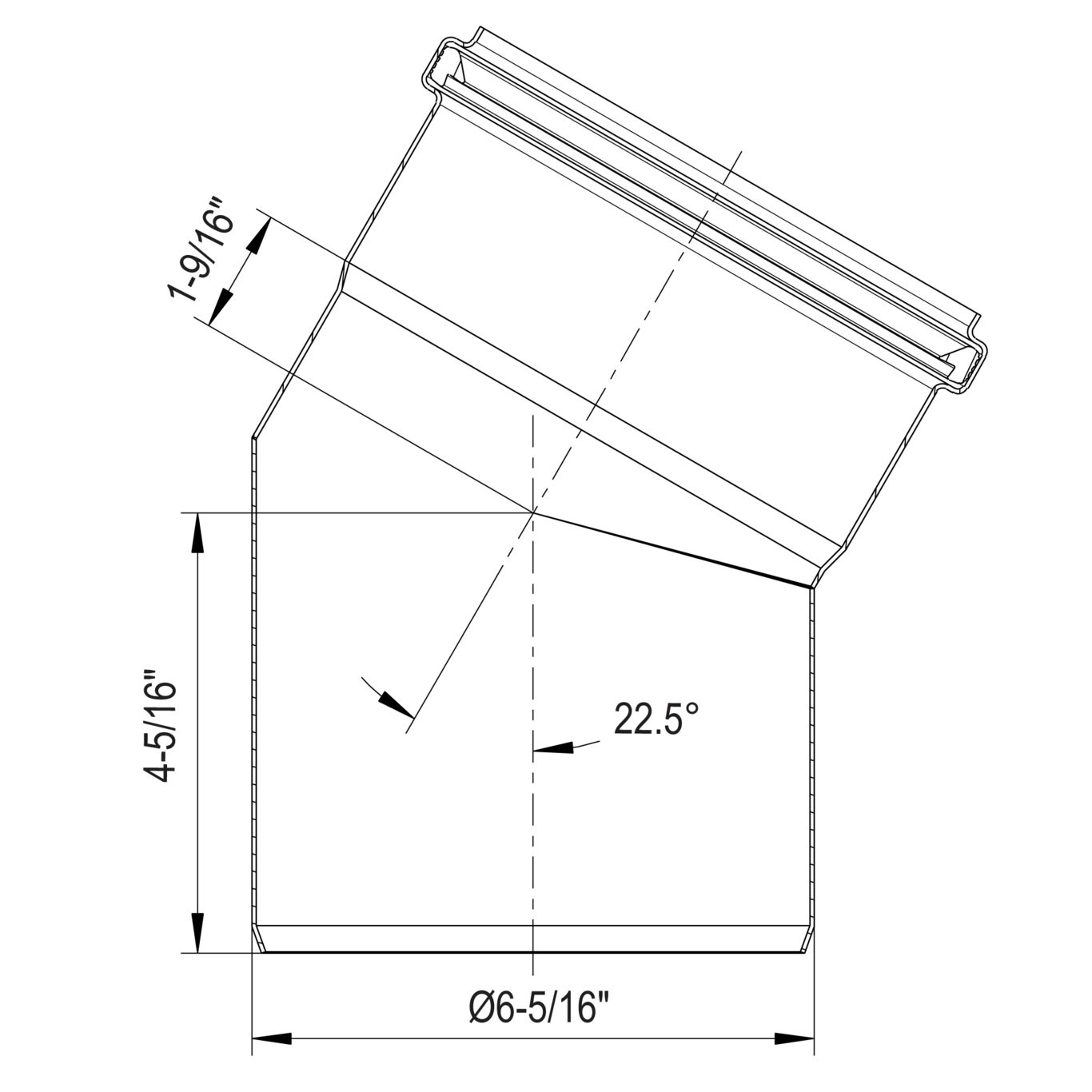

BEND 22.5°
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 22.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 1.18 |
| Weight (lbs) | 2.6 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
Declaration of Perfomance EN1124-1-001
DK - VA 2.12/19349 EuroPipe DS432
BLÜCHER® EuroPipe EPD
Declaration of Perfomance BS-EN1124-1-002 TÜRK LOYDU - 25041616077231247 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA PL - Hygienic Certificate - All Products RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes
