BEND 15° - (820.015.040)
×
![]()
Part Of the Series: Bend-15
Type no.: 820.015.040
EAN no.: 5705499412857
VVS no.: 160209040
RSK no.: 1552785
NRF no.: 2171199
LVI no.: 0240581

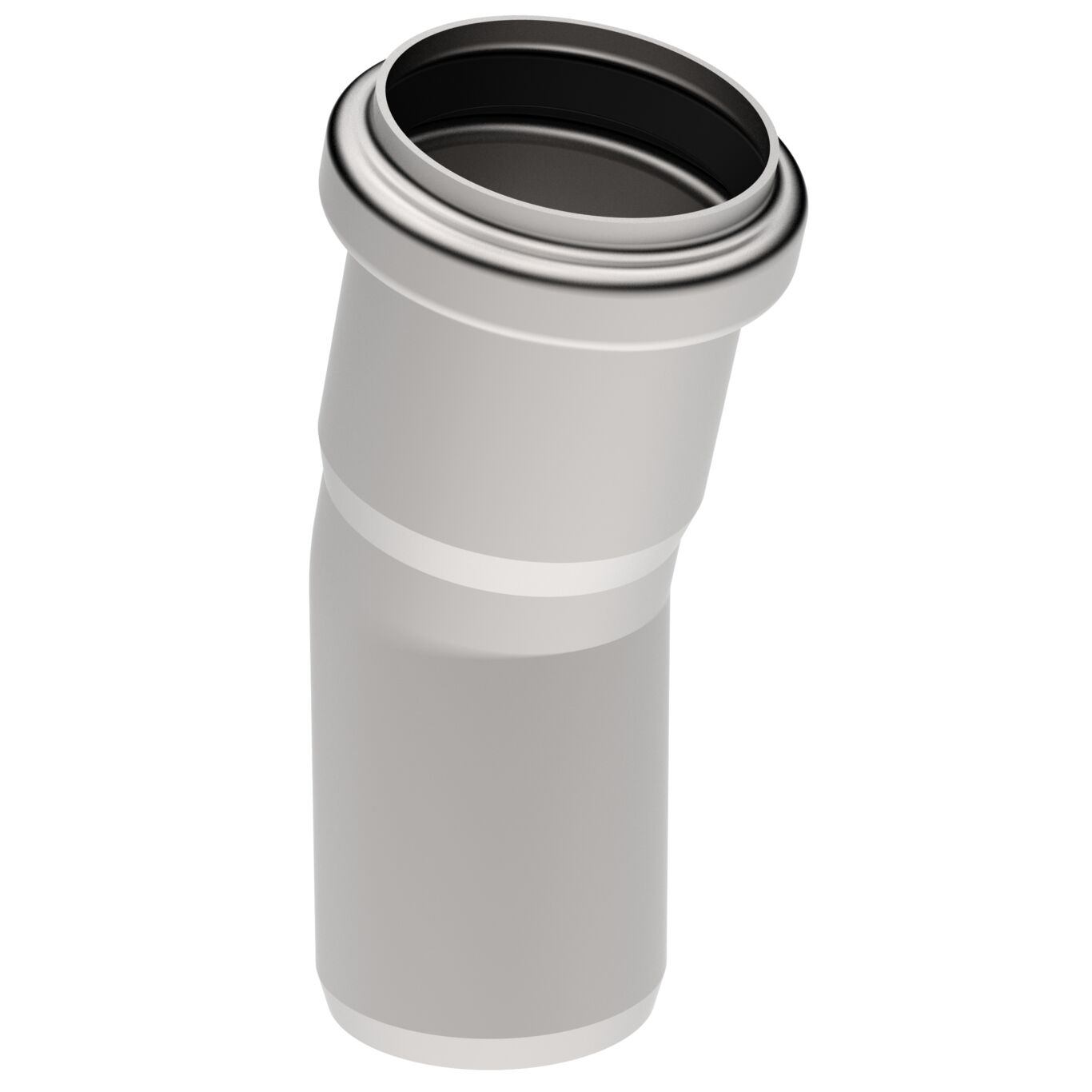

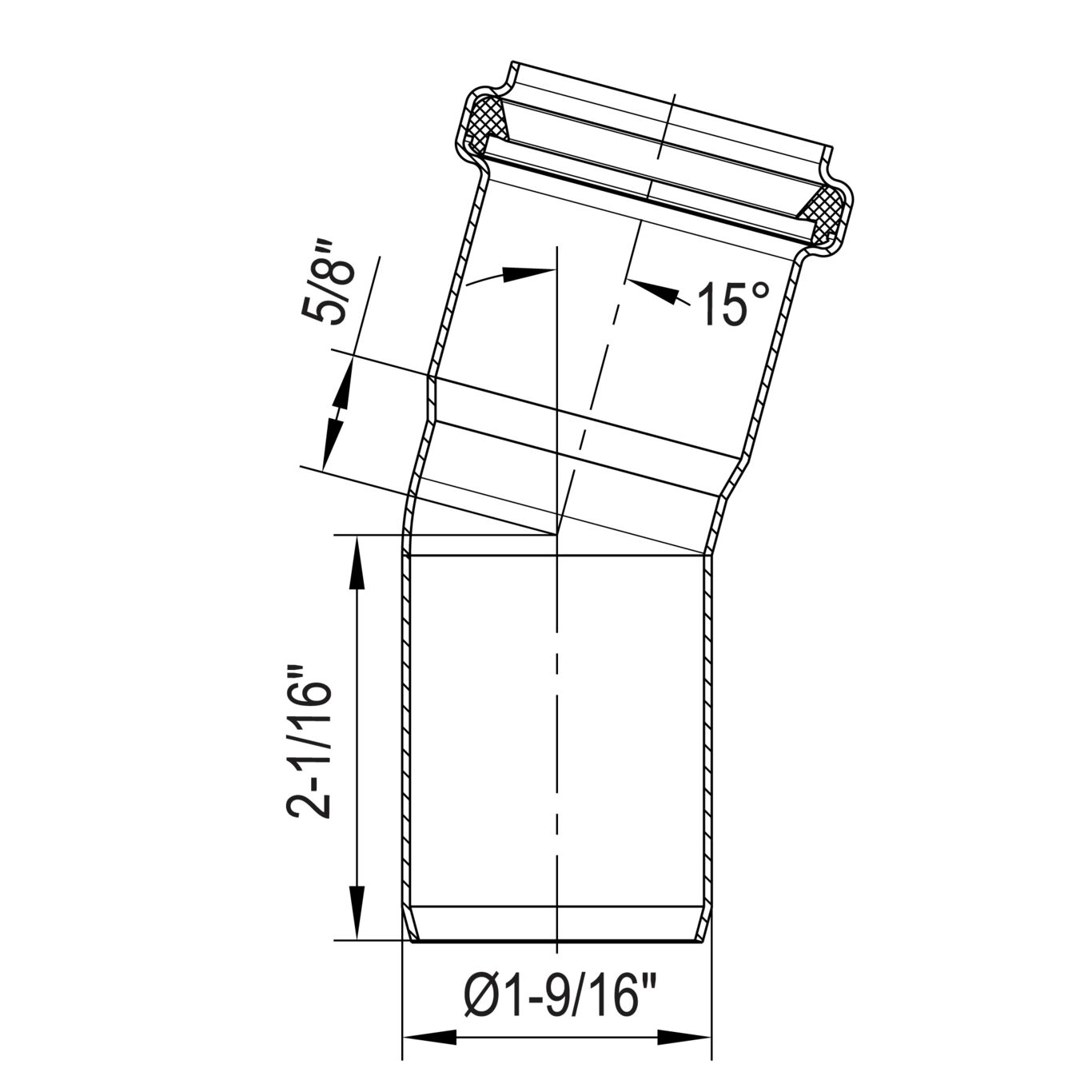

BEND 15°
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 0.12 |
| Weight (lbs) | 0.26 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe ABS - LD1716353-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe
