FLANGE ADAPTOR - (850.015.110 S FL)
Part Of the Series: Adaptor-flange
Type no.: 850.015.110 S FL
EAN no.: 5705499409710
NRF no.: 2172677

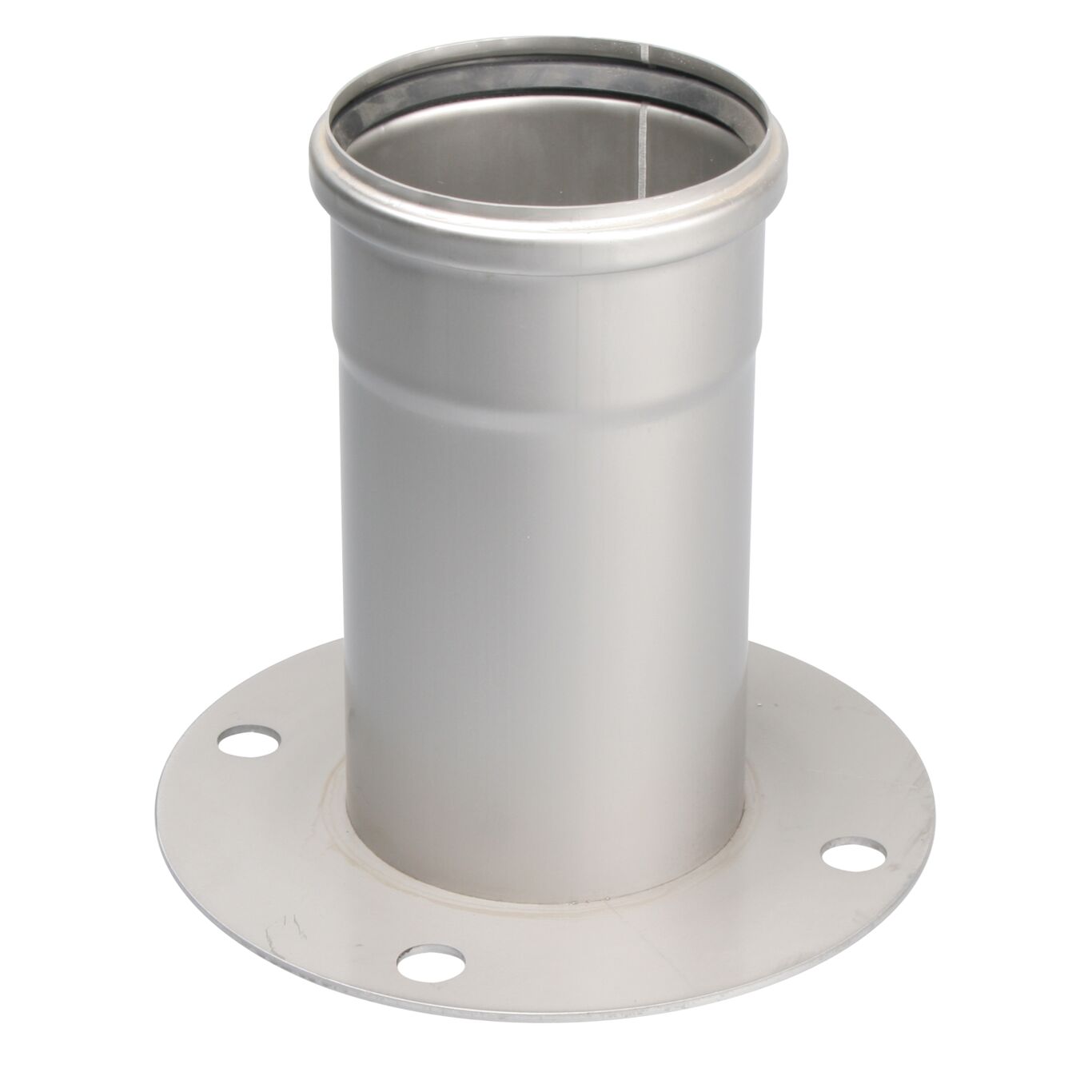

FLANGE ADAPTOR
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length (mm) | 150 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 207 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Weight (kg) | 1.74 |
Weight (lbs) | 3.84 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products TÜRK LOYDU - 25041616077231247 ABS - LD1716353-PDA
