DIN FLANGE ADAPTOR WITH SPIGOT - (854.310.110 S)
×
![]()
Part Of the Series: Adaptor-flange-DIN
Type no.: 854.310.110 S
EAN no.: 5705499403909
RSK no.: 1552195
NRF no.: 2170318

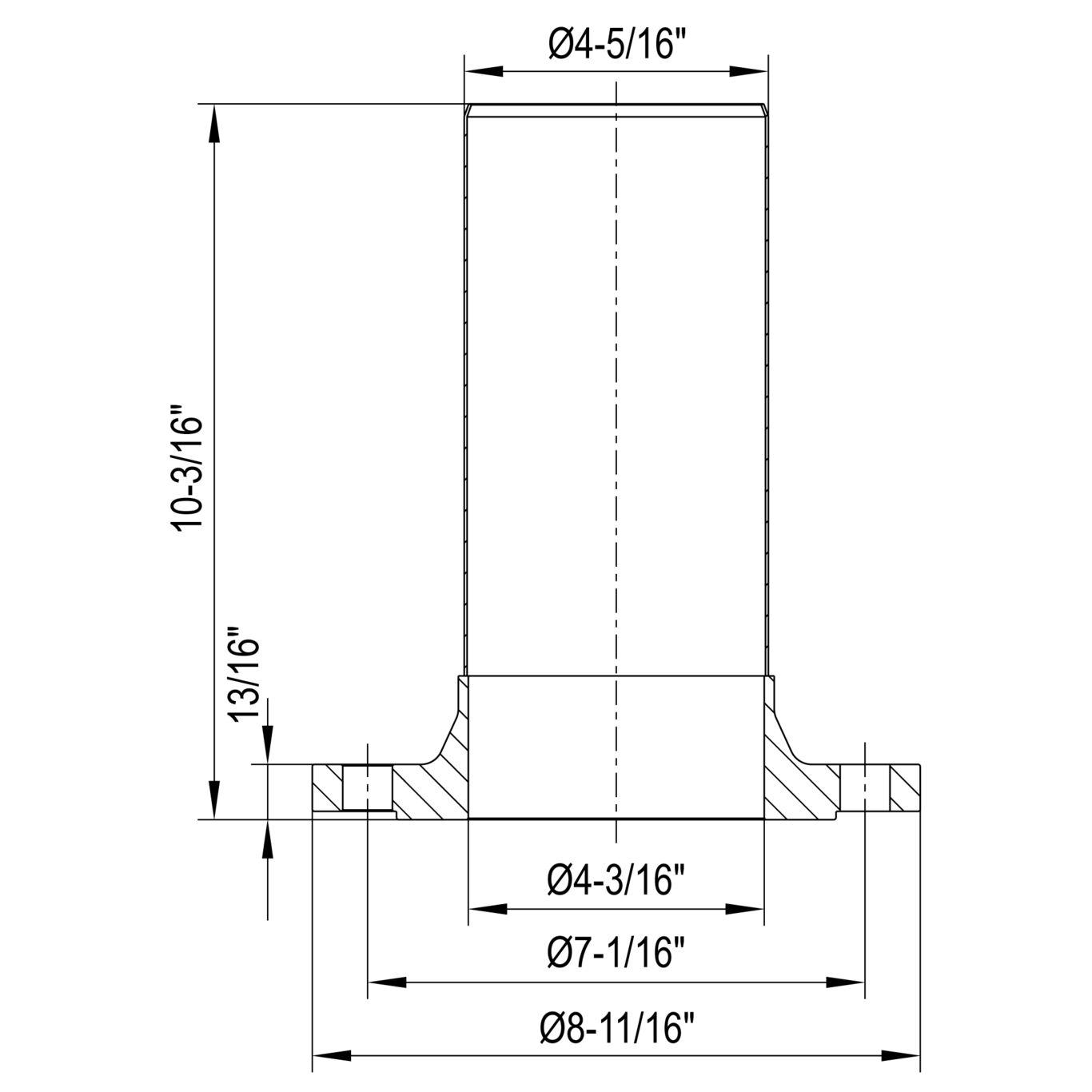

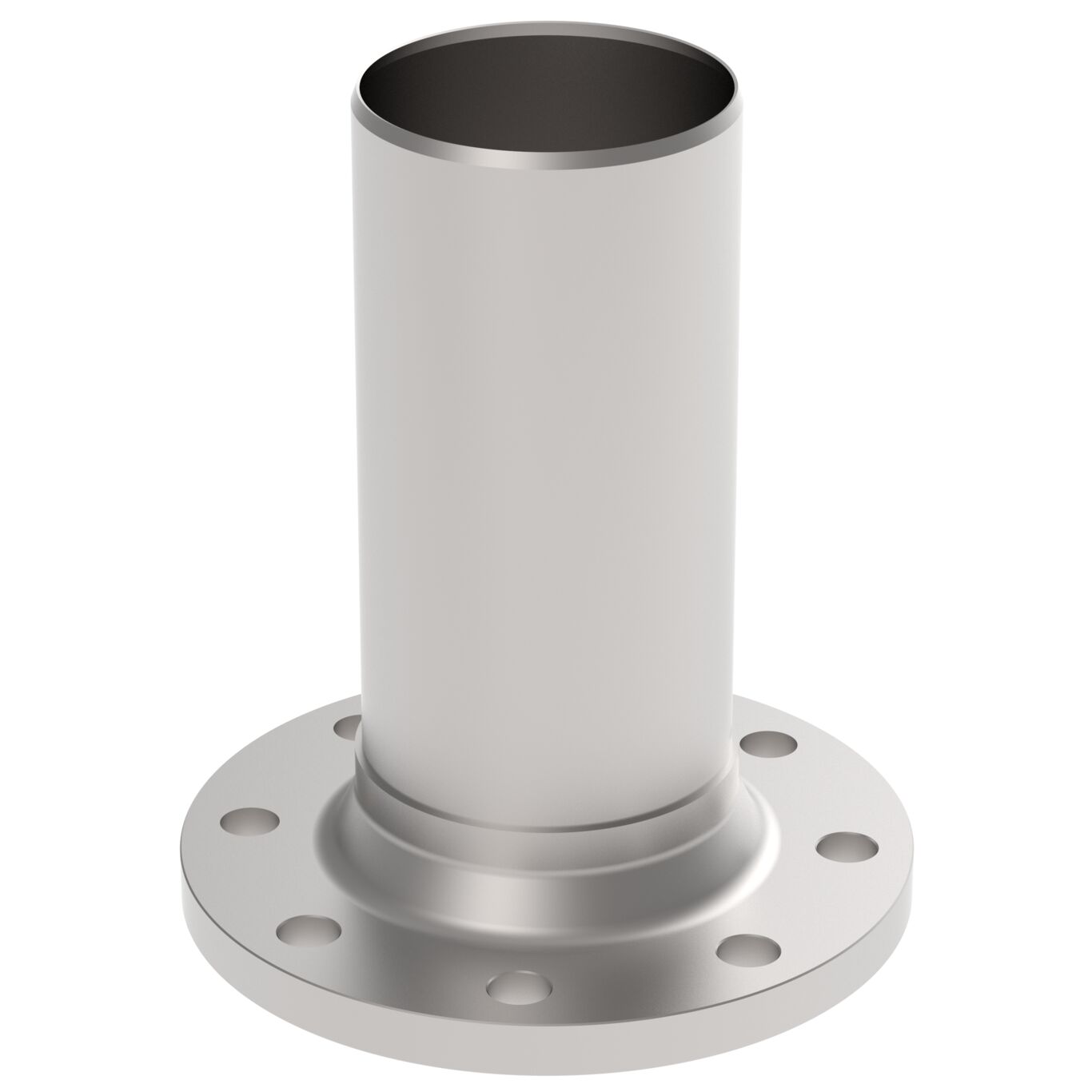

DIN FLANGE ADAPTOR WITH SPIGOT
-Diameter: Ø110mm
-Flange PN16/DN100, DIN 2633/EN1092-1
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 207 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 259 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 5.15 |
| Weight (lbs) | 11.35 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
BLÜCHER® EuroPipe EPD TÜRK LOYDU - 25041616077231247 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA ABS - LD1716353-PDA
