BEND 87.5° WITH ACCESS - (823.090.110)
×
![]()
Part Of the Series: Bend-87.5-BSP connection
Type no.: 823.090.110
EAN no.: 5705499408836
NRF no.: 2172327

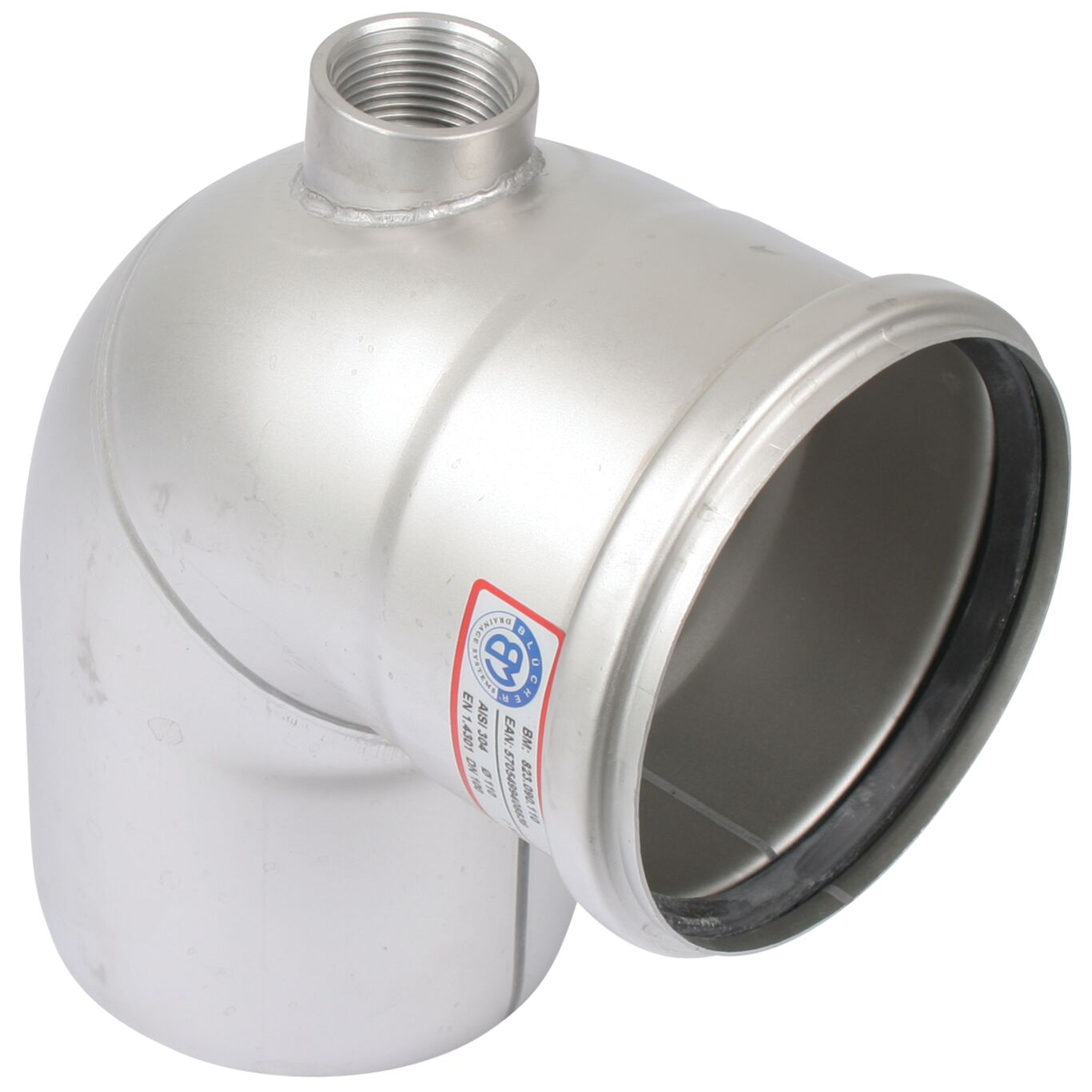

BEND 87.5° WITH ACCESS
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301

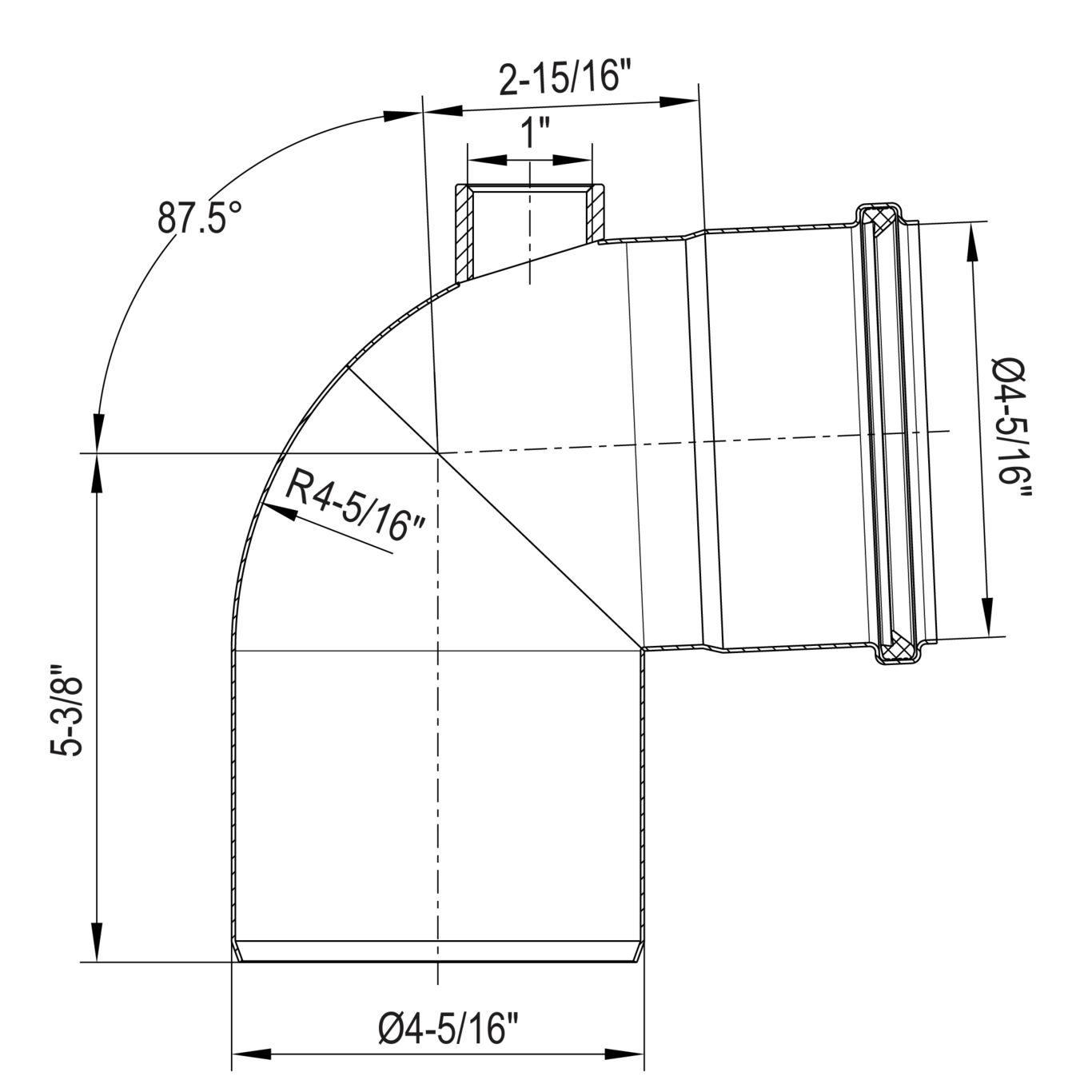

| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.91 |
| Weight (lbs) | 2.01 |
-
Approval Information
For approval information, please refer to the below approval certificates.
