BFD-130 Floor Drain

×

12 Inch Adjustable Floor Drains with Membrane Clamp

Download CAD Collections

2d DWG files

3d STP files


Download MasterSpec Documents

MasterSpec

BFD-130 AISI Type 304 stainless steel adjustable floor drain with 12in. x 12in.(300mm x 300mm) top, membrane clamping flange, and a 1/8in.(3mm) grating. Model options include Square or Round (-R) top, and Bottom or Side Outlet (SO) in 4 or 6" sizes.


US Order # / Description

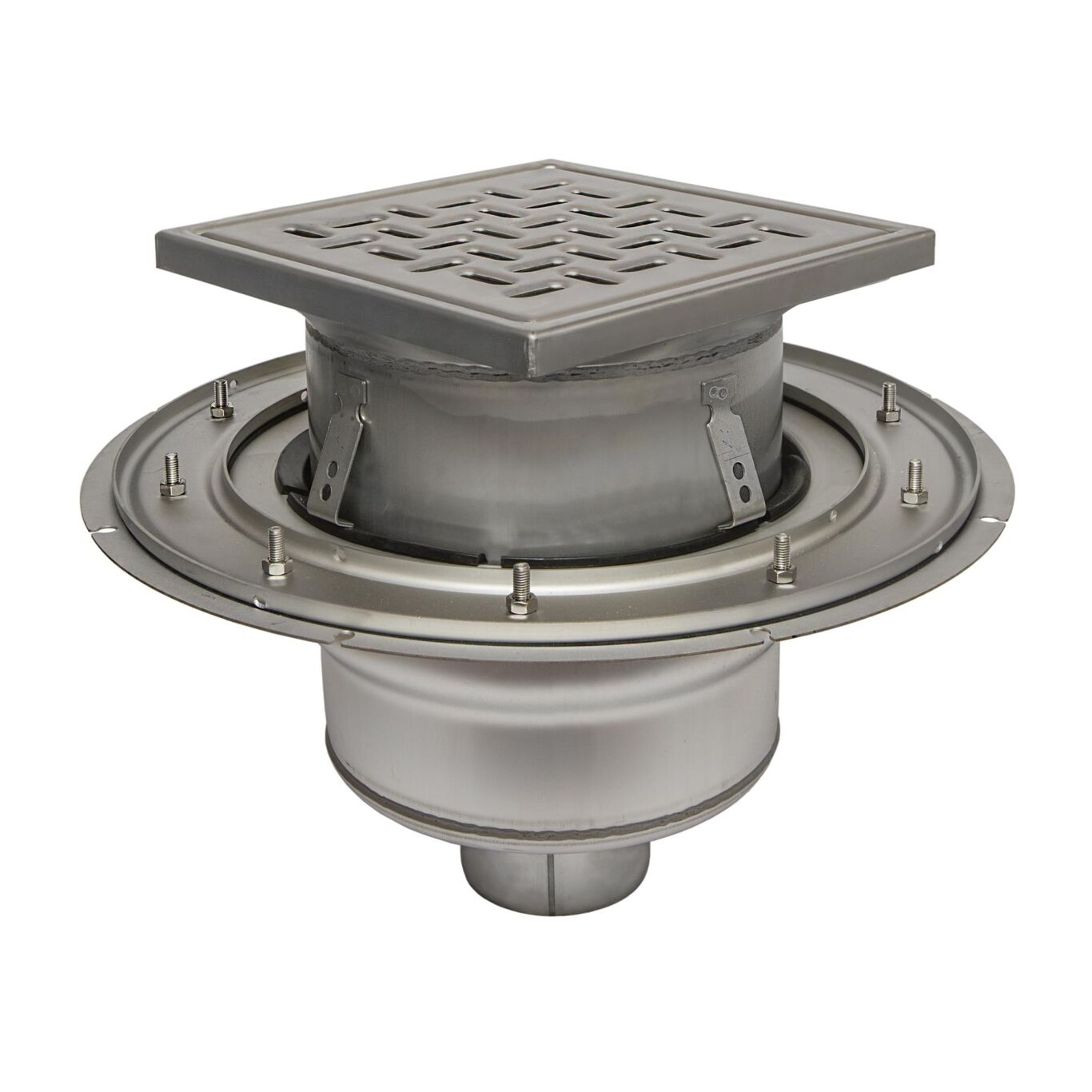

BFD-134 / 12"(300) Sq. Top - Adj. FD w/ Membrane Clamp - 4"(110) BO

BFD-136 / 12"(300) Sq. Top - Adj. FD w/ Membrane Clamp - 6"(160) BO

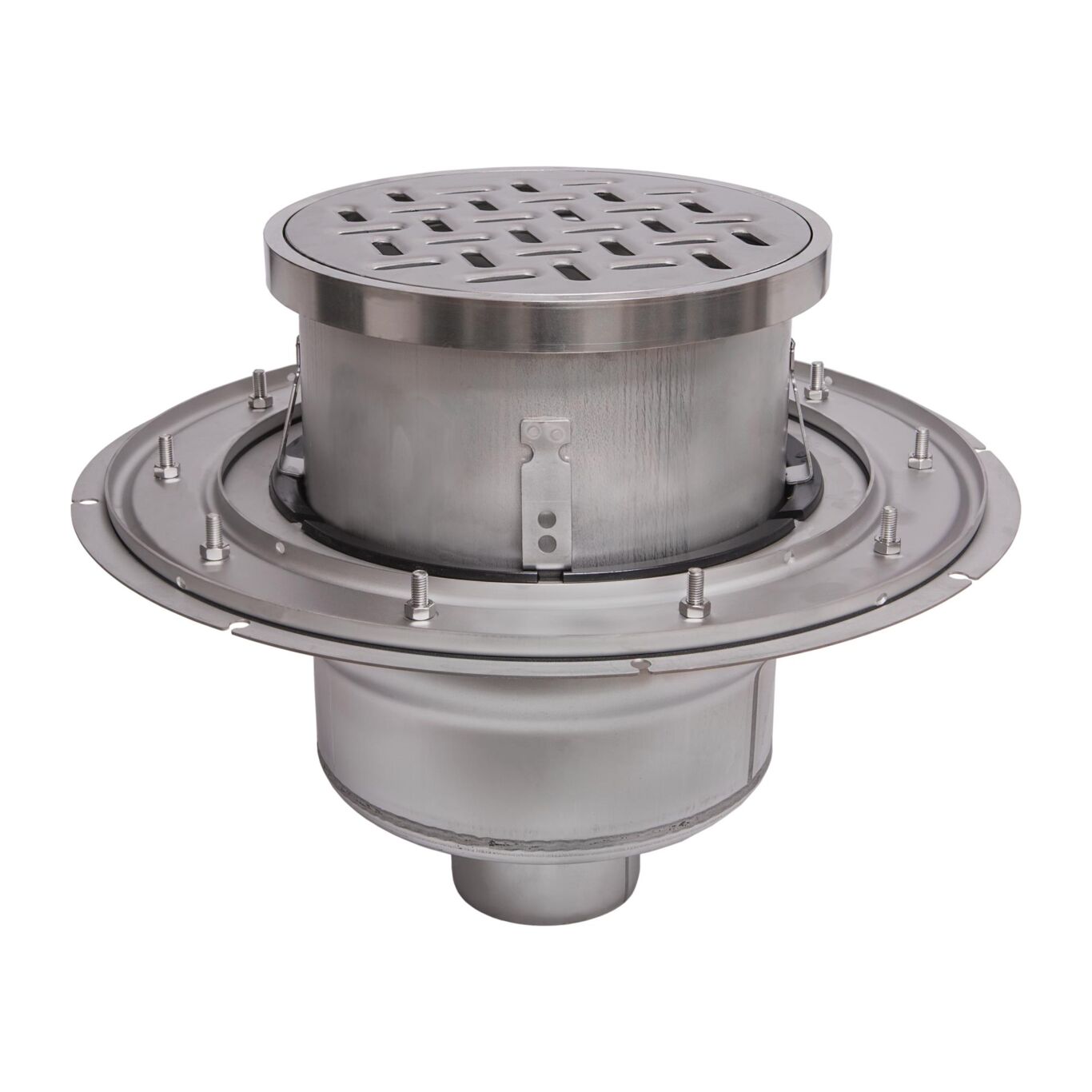

BFD-134-R / 12"(305) Rd. Top - Adj. FD w/ Membrane Clamp - 4"(110) BO

BFD-136-R / 12"(305) Rd. Top - Adj. FD w/ Membrane Clamp - 6"(160) BO

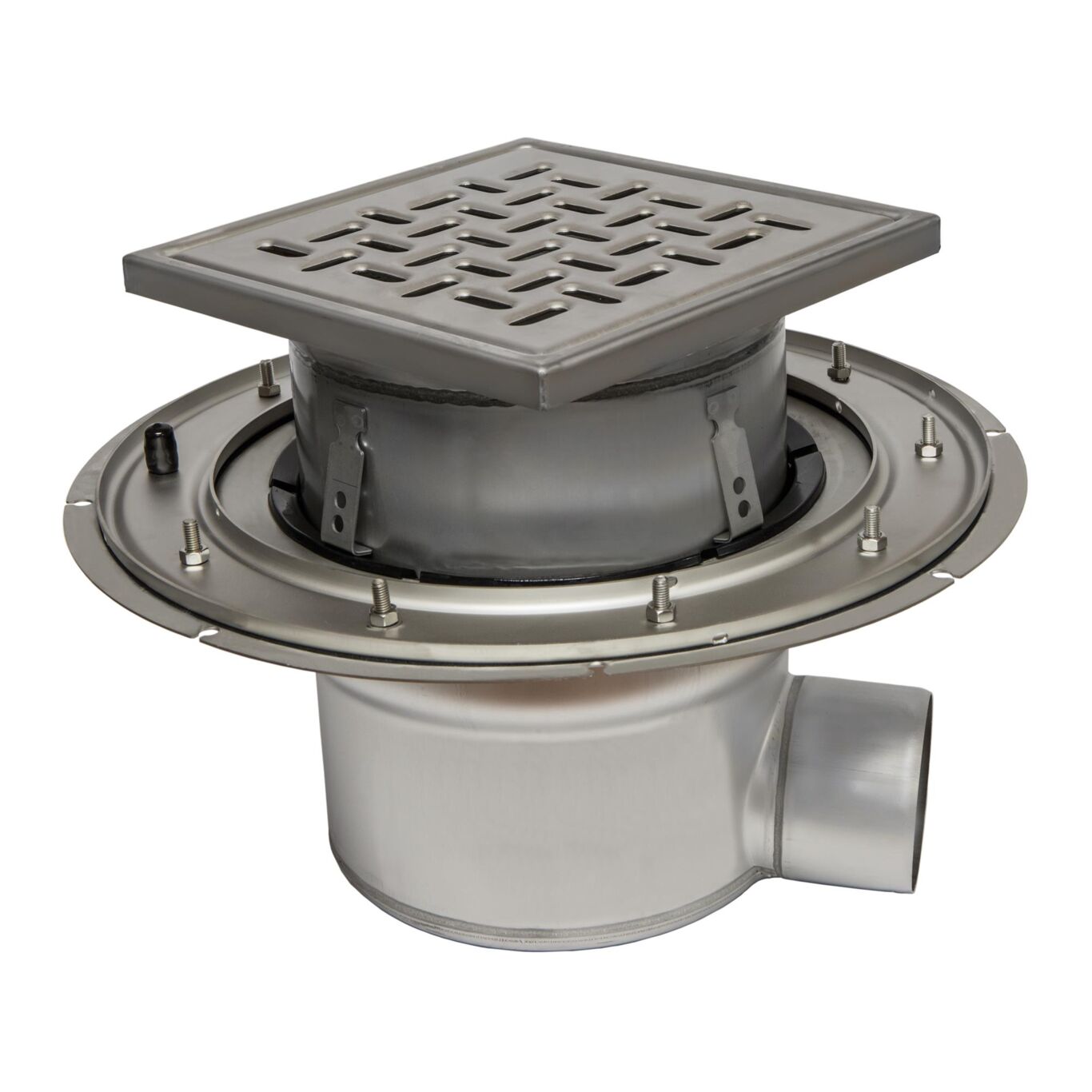

BFD-134-SO / 12"(300) Sq. Top - Adj. FD w/ Membrane Clamp - 4"(110) SO

BFD-136-SO / 12"(300) Sq. Top - Adj. FD w/ Membrane Clamp - 6"(160) SO

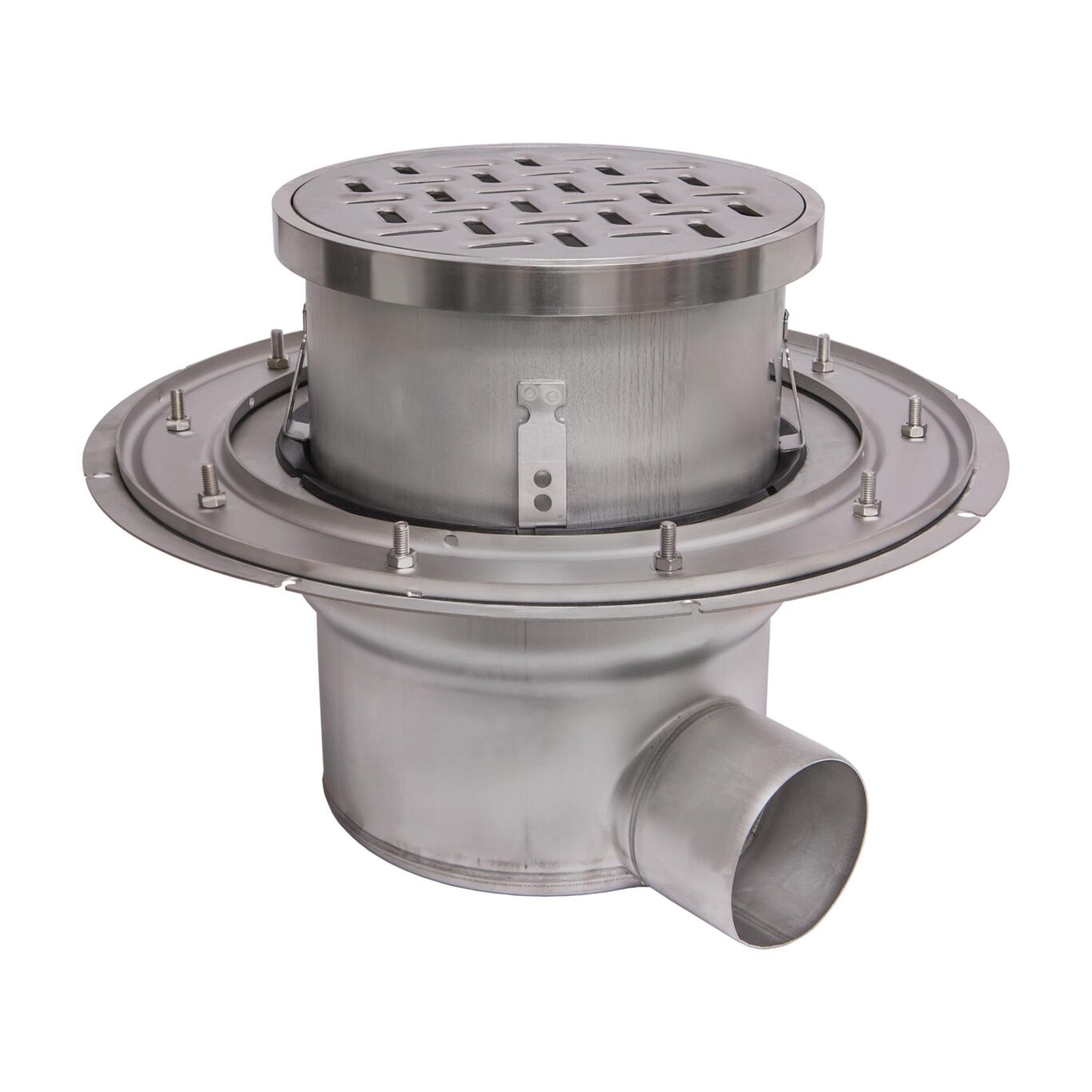

BFD-134-R-SO / 12"(305) Rd. Top - Adj. FD w/ Membrane Clamp - 4"(110) SO

BFD-136-R-SO / 12"(305) Rd. Top - Adj. FD w/ Membrane Clamp - 6"(160) SO
